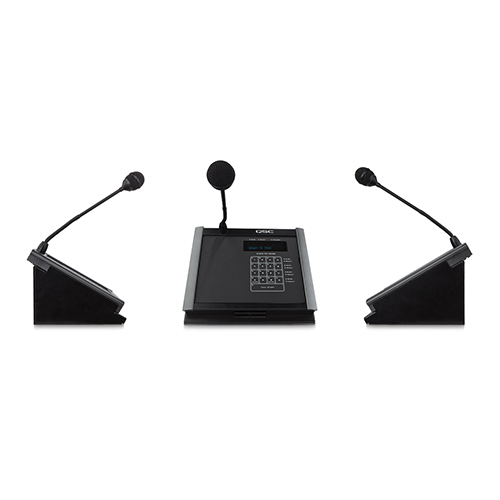

Page Station with 16 direct-select buttons and Gooseneck mic ยี่ห้อ QSC รุ่น PS-1650G
Features
- Capacitive touch, programmable keypad and 240 x 64 graphics LCD for flexible customization
- Fully compatible with all Q-SYS systems. Simply connect to a Q-SYS system (with version 2.0 software or later) and all paging functions are available without the need for additional hardware boxes
- Second microphone input and GPIO allow one Page Station to serve two locations
- Dual Ethernet connections support network redundancy
- May use Power over Ethernet (PoE) or local power supply
- Rugged, gooseneck microphone
- Q-SYS technical support is available 24/7 – worldwide
| SPECIFICATIONS | Page Station |
| Audio Channel Capacity | 2 line inputs, 1 line output |
| Front Panel Controls | Paging Keypad: Capacitive touch keypad Microphone: PTT momentary switch |
| Front Panel Indicators | Talk, Ready, Busy: Bi-color LEDs (red/green) Keypad button activity: Green LEDs LCD: 240 × 64 monochrome graphics display |
| Front Panel Connectors | RJ45 microphone connector |
| Rear Panel Connectors | Q-SYS Network LAN A: RJ45 1000 Mbps only Q-SYS Network LAN B: RJ45 1000 Mbps only DC power +24V inlet: 2-pin Euro receptacle Line input: 3-pin Euro receptacle Line output: 3-pin Euro receptacle GPIO: 6-pin Euro receptacle |
| Line Voltage Requirements | IEEE 802.3af power over Ethernet (POE) or +24V DC |
| Dimensions (H×W×D) mm | 264 × 211 × 38 |
| Dimensions (H×W×D) in | 10.37 × 8.3 × 1.5 |
| Accessories Included | Hardware user manual, connector ship kit, warranty card and PTT handheld microphone |
| Line Input | |
| Dynamic Range Unweighted A-weighted |
> 115 dB > 118 dB |
| Distortion (20 Hz – 20 kHz, all sensitivities) +4 dBu (max) 2 dB below clip |
< 0.009% THD+N < 0.009% THD+N |
| Crosstalk (20 Hz – 20 kHz) Inter-channel (max) Inter-channel (typical) Intra-channel (max) Intra-channel (typical) |
> 75 dB > 90 dB > 85 dB > 100 dB |
| Frequency Response 20 Hz – 20 kHz (max) 20 Hz – 20 kHz (typical) |
± 0.5 dB ± 0.2 dB |
| Input Impedance Balanced (nominal) Unbalanced (nominal) |
10k ohms 10k ohms |
| Common Mode Rejection 20 Hz – 20 kHz (max) 20 Hz – 20 kHz (typical) |
> 54 dB > 60 dB |
| Input Sensitivities | Vrms: 1.5, 3, 9, 18 dBu: 5.7, 11.8, 21.3, 27.3 dBv: 3.5, 9.5, 19.1, 25.1 |
| Line Output | |
| Dynamic Range Unweighted A-weighted |
> 112 dB > 115 dB |
| Crosstalk (20 Hz – 20 kHz) Inter-channel (max) Inter-channel (typical) Intra-channel (max) Intra-channel (typical) |
> 75 dB > 90 dB > 85 dB > 100 dB |
| Mute | Infinite attenuation |
