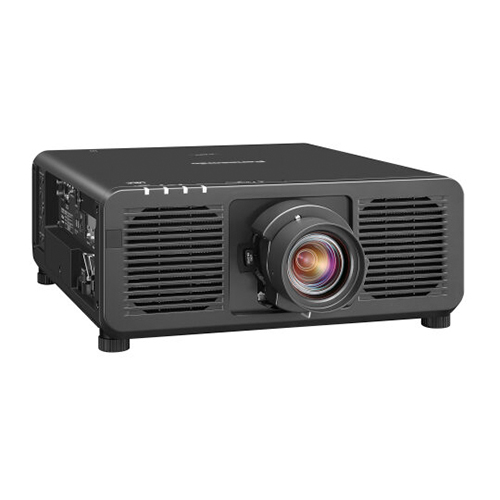

โปรเจคเตอร์ ยี่ห้อ PANASONIC รุ่น PT-REQ12BE
| Projector type | 1-Chip DLP™ projectors |
|---|---|
| DLP™ Chip | Panel Size | 0.8 in diagonal (16:10 aspect ratio) |
| DLP™ chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) |
| Light Source | Laser diode |
| Light Output*1 *2 | 12,000 lm / 12,400 lm (Center)*3 |
| Screen Size (Diagonal) | 70–700 inches (with supplied lens) |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Contrast Ratio*1 | 25,000:1 (Full On/Full O , Dynamic Contrast [3]) |
| Time until light output declines to 50 %*4 | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Center-to-corner zone ratio*1 | 90 % |
| Lens | PT-REQ12/REQ10/REQ80: Powered zoom (throw ratio 1.36–2.10:1 for supplied lens), powered focus;
PT-REQ12L/REQ10L/REQ80L: Optional powered zoom/focus lenses |
| Lens shift | Vertical(From the origin point of the lens mounter) | ±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100) |
| Lens shift | Horizontal(From the origin point of the lens mounter) | ±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100) |
| Keystone Correction Range | Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500),Horizontal: ±40 ° (±3 ° with ET-C1U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500) |
| Terminals | HDMI™ 1/2 IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals | DisplayPort™ | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals | Multi Sync In | BNC x 1 |
| Terminals | Multi Sync Out | BNC x 1 |
| Terminals | Serial In | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | Serial In/Out | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals | REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals | Remote 2 In | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals | DC Out | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals | Expansion Slot | Open slot for for function boards, Intel® SDM compatible |
| Protocol versions | IPv4, IPv6*5 |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power consumption*6 | Maximum power consumption | 1,030 W (10.4–4.3 A) (1,040 VA) (Power consumption is 990 W at AC 200–240 V) |
| Power Consumption*6 | On-mode power consumption (Operating mode) Nomal | 880 W (AC 100–120 V), 840 W (AC 200–240 V) |
| Power Consumption*6 | On-mode power consumption (Operating mode) ECO | 680 W (AC 100–120 V), 655 W (AC 200–240 V) |
| Power Consumption*6 | On-mode power consumption (Operating mode) QUIET | 670 W (AC 100–120 V), 645 W (AC 200–240 V) |
| Operation noise*1 | 38 dB (NORMAL/ECO), 35 dB (QUIET) |
| Dimensions (W x H x D) | PT-REQ12/REQ10/REQ80: 648 x 212 x 538 mm (25 1/2˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position) PT-REQ12L/REQ10L/REQ80L: 498 x 212 x 538 mm (19 5/8˝ x 8 11/32˝ x 21 3/16˝ ) (With feet at shortest position) |
| Weight*7 | PT-REQ12/REQ10/REQ80: Approx. 28.7 kg (63.28 lbs) (with supplied lens), PT-REQ12L/REQ10L/REQ80L: Approx. 27.0 kg (59.53 lbs) (without lens) |
| Operating Environment | Operating temperature: 0–45 °C (32–113 °F)*8, operating humidity: 10–80 % (no condensation) |
| Applicable Software | Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
| Control function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) |
| Note | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped. *2 When [OPERATING MODE] is set to [NORMAL]. *3 Average light output value of all shipped products measured at center of screen in [NORMAL] Mode. *4 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on the environment. *5 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *6 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *7 Average value. May differ depending on the actual unit. *8 When the optional AJ-WM50 Series wireless module is attached, the operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). |
