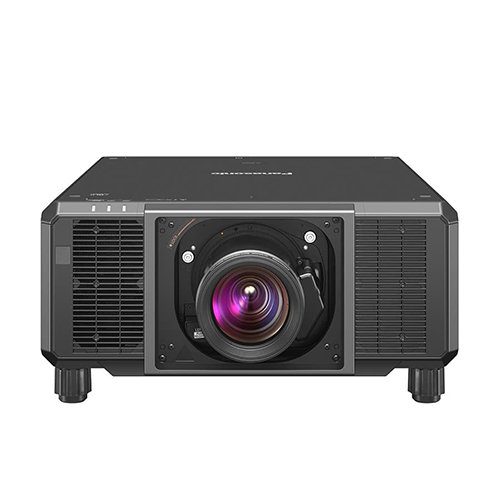

โปรเจคเตอร์ ยี่ห้อ PANASONIC รุ่น PT-RQ25KE
| Projector type | 3-Chip DLP™ projector |
|---|---|
| DLP™ chip | Panel size (mm) | 20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| DLP™ chip | Panel size (inch) | 20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| DLP™ chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) x 3 |
| Light Source | Laser diode |
| Light Output*1 *2 | 20,000 lm / 21,000 lm (Center) *3 |
| Time until light output declines to 50 %*4 | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Contrast Ratio*2 | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) (mm) | 1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEW200 |
| Screen size (diagonal) (inch) | 1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEW200 |
| Center-to-corner zone ratio*2 | 90 % |
| Lens | Optional (no lens included with this model) |
| Lens shift | Vertical(From the origin point of the lens mounter) | ±66 % (±52 % with ET-D75LE6/ET-D3LEW60, +71 % / +93 % with ET-D75LE95, ±66 % with ET-D3LEU100, ±57 % with ET-D3LEW200) (powered) |
| Lens shift | Horizontal(From the origin point of the lens mounter) | ±24 % (±18 % with ET-D75LE6/ET-D3LEW60, ±14 % with ET-D75LE95, -25 % / +30 % with ET-D3LEU100, ±18 % with ET-D3LEW200) (powered) |
| Keystone Correction Range | Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20,±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95),Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| Terminals | HDMI In | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input”*5) |
| Terminals | DisplayPort | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input”*5) |
| Terminals | Multi Projector Sync In | BNC x 1 |
| Terminals | Multi Projector Sync Out | BNC x 1 |
| Terminals | MULTI PROJECTOR SYNC IN/ 3D SYNC 1 IN/OUT(dual purpose) | – |
| Terminals | MULTI PROJECTOR SYNC OUT/ 3D SYNC 2 OUT(dual purpose) | – |
| Terminals | Serial In | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | Serial Out | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote contro |
| Terminals | REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals | Remote 2 In | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals | DC Out | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals | Expansion Slot | Open slot for for function boards, Intel® SDM compatible |
| Power Supply | AC 100 V–120 V / AC 200 V–240 V, 50 Hz/60 Hz (The maximum value of light output is limited to 15,000 lm or less when using the projector with AC 100 V to AC 120 V. Other limitations apply*6 .) |
| Power consumption | Maximum power consumption | AC 200 V–AC 240 V : 1,490 W (1,520 VA) AC 100 V–AC 120 V : 1,080 W (1,090 VA) |
| Power consumption | On-mode power consumption (Operating mode)[Normal] | 1,330 W |
| Power consumption | On-mode power consumption (Operating mode)[Eco] | 1,040 W |
| Power consumption | On-mode power consumption (Operating mode)[Quiet] | 1,030 W |
| Operation Noise*2 | 46 dB (NORMAL/ECO), 43 dB (QUIET) |
| Dimensions (W x H x D) | Approx. 550 x 220 x 570 mm (21 5/8˝ x 8 11/16˝ x 22 7/16˝ ) (not including protruding parts) |
| Weight*8 | Approx. 35 kg (77.2 lbs) |
| Operating Environment | Operating temperature: 0–45 °C (32–113 °F*9), operating humidity: 10–80 % (no condensation) |
| Applicable software/application | Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
| Note | *1 This is the value when the Zoom Lens (Model No.: ET-D3LES20) is used with power supply voltage of AC 200 V to AC 240 V. The value varies depending on the lens.
*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. *3 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *4 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output decreases to 50 % will vary depending on environment. *5 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ24K and PT-RZ17K. *6 Maximum value of light output is further decreased in the following cases: when a function board is installed in the slot, when the light source is deteriorating from use, or when there is dust on the optical parts. *7 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *8 Average value. May differ depending on the actual unit. *9 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). |
