| Manufacturer |
Panasonic |
| Application |
For business and education |
| Positioning |

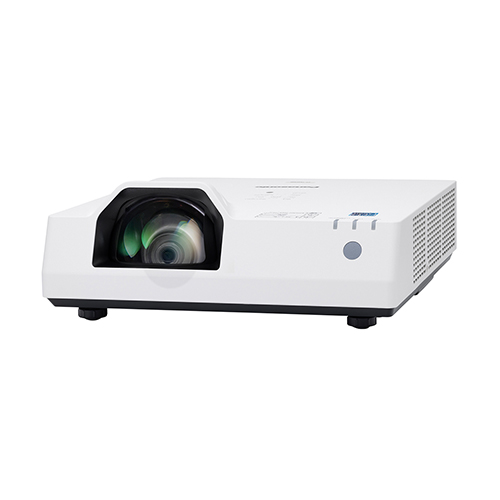

WUXGA Short Throw Projector for Business and Education |
| Technology |
3LCD |
| Light source |
Laser |
| Matrix size |
0.64″ |
| Luminous flux (ANSI lm) |
3800 |
| Permission |
WUXGA (1920 x 1200) |
| Format |
16:10 |
| Contrast |
3000000:1 |
| Lens |
fixed manual |
| Lens parameters |
F= 1.8, f= 6.08 mm |
| Distance to screen |
0.45 – 0.97 m for 16:10 format |
| Image diagonal |
1.27–2.67 m (50–105 inches) for 16:10 format |
| Ceiling and rear projection capabilities |
Eat |
| Vertical digital keystone correction |
±15° (automatic, manual) |
| Horizontal digital keystone correction |
±15° (manual) |
| Lamp |
laser diode |
| Lamp life |
20,000 hours |
| Economy lamp mode |
24,000 hours |
| Management interfaces |
LAN ; D-sub 9-pin (female) x 1 (RS-232C) for external control |
| Inputs / Outputs |
HDMI 19-pin x 2, Deep Color, HDCP 1.4 compatible, 4K/30p input signal, CEC supported; D-sub HD 15 pins x 1 (female), (RGB / YPBPR / YСBСR x 1) x 2; M3 x 1; M3 x 1 for audio input or for connecting a microphone (optional); USB Type-A x 1 (DC 5V, max 500mA), for viewing USB memory or connecting an optional Wi-Fi module. |
| LAN |
RJ-45 x 1, for network connection, 10Base-T, 100Base-TX, compatible with PJLink |
| Audio system |
Built-in speaker 10W, mono |
| Technology and functionality |
1.2x varifocal lens; super close projection – 203.2 (80 inches) diagonal image from 75 cm; horizontal and vertical keystone correction; Multi Projector Monitoring & Control Software for monitoring and controlling multiple projectors over a local network; Compatible with Crestron Connected, Extron, AMX DD and PJLink.; Wi-Fi optional (module purchased separately). |
| Projector power consumption |
215W (approx. 0.5W in STANDBY MODE when set to ECO mode, 14W in STANDBY MODE when set to NORMAL mode) |
| Noise level in normal/economy mode (dB) |
35/24 |
| Dimensions (W x H x D), mm |
349 x 105 x 309 |
| Weight (kg) |
4..9 |
| Warranty (years) |
3 |
