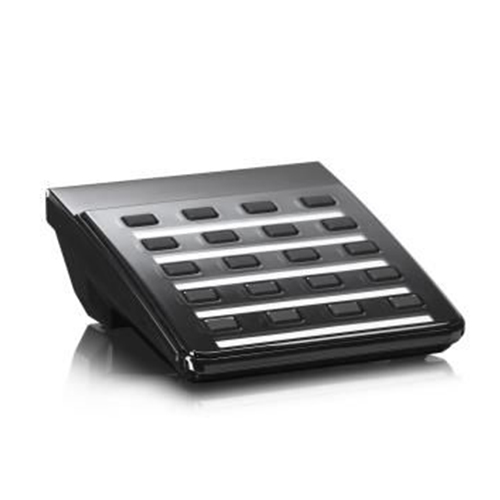

Call Station Extension PAVIRO ยี่ห้อ BOSCH รุ่น PVA-20CSE

The PVA-20CSE is a call station extension for the PAVIRO system.

The call station extension has 20 customizable selection buttons. A maximum of five call station extensions can be installed on one call station.

• Call station extension keypad with 20 freely programmable buttons
• Soft-touch selection buttons
• Up to 5 extension keypads can be connected to one call station
• EN 54-16 system certification

Technical specifications
Electrical

• Buttons 20 programmable zone/function keys
• Indicator lights Green and red LED per  programmable zone/function key

Mechanical

• Product dimensions (Height x Widthx Depth)  163 mm x 140 mm x 63 mm
• Net weight 0.35 kg
• Color RAL 9017 (traffic black)

Enviromental

• Operating temperature -5 °C to +45 °C (+23 °F to +113 °F)
• Storage and transport temperature -25 °C to +70 °C (-13 °F to +158 °F)
• Humidity (non-condensing) 5% to 90%
• Altitude Up to 2000 m
