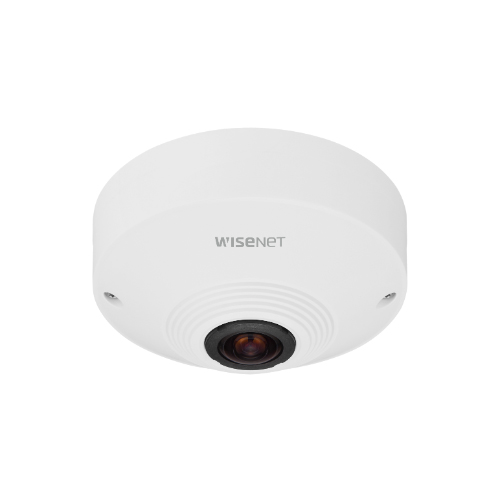

กล้องวงจรปิด 6MP Fisheye Camera ยี่ห้อ Wisenet รุ่น QNF‐8010
- 6 MP image sensor, 2048 x 2048 resolution output, 30fps
- Fisheye lens 1.14mm (187°X187°)
- Original fisheye view, onboard dewarping to Single panorama, Double panorama, Quad view
- Lens rotation & analog video output for easy installation and adjustment
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB
- Defocus, Tampering, motion detection
- Heatmap, people counting business intelligence
- SD card slot
- IP42 rated, PoE powered
- White camera body
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/1.8″ 6MP CMOS |
| Resolution | Original view: 2048×2048, 1280×1280, 1080×1080, 960×960, 768×768, 720×720, 640×640, 480×480 Single panorama: 2048×512, 1920×480, 1280×320, 640×160, 704×176 Double panorama: 2048×1024, 1920×960, 1280×640, 640×320, 704×352 Quad view: 2048×1536, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 704×576 Q1/2/3/4: 1024×768, 800×600, 640×480 |
| Max. Framerate | H.264/H.265 : 30fps/25fps@2048×2048(60Hz/50Hz) MJPEG : Max 15fps |
| Min. Illumination | Color: 0.2 Lux (F2.5, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for Installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.14mm fixed focal |
| Max. Aperture Ratio | F2.5 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.3m |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, Rectangle zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP42 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.4W, typical 4.6W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø99x49mm(Ø3.9×1.93″), 320g(0.705 lb) |
