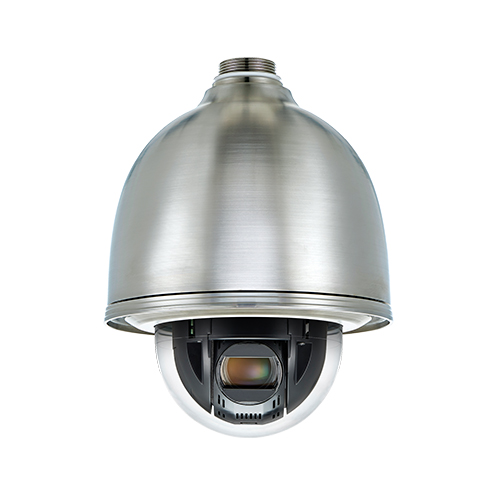

กล้องวงจรปิด 2MP 32x PTZ ยี่ห้อ Wisenet รุ่น QNP‐6320HS
- Stainless Steel SUS316L camera for harsh environments
- 2MP resolution, 60fps
- 4.44~142.6mm (32x) lens
- Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
- Intelligent Analytics
- H.264, H.265, MJPEG codec, WiseStreamII
- Micro SD/SDHC/SDXC 1 slot 256GB
- IP66/IP67, IK10, NEMA4X, PoE+, Operational Temperature Range -31°F ~ +131°F
- Compatible with SPM-4210 Network I/O Box for Alarm I/O and Audio I/O
| Video | |
|---|---|
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom) |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 64.66°(Wide)~2.29°(Tele) V: 38.08°(Wide)~1.30°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 700°/sec, Manual: 0.024°/sec~200°/sec |
| Tilt Range | 105°(90°~-15°) |
| Tilt Speed | Preset: 300°/sec, Manual: 0.024°/sec~200°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones – Color: Grey/Green/Red/Blue/Black/White – Solid/Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Analytics events – Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(Via optional I/O box SPM-4210) |
| Alarm Triggers | Analytics, Network disconnect * Alarm input((Via optional I/O box SPM-4210) |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) * Alarm output / Audio clip playback(Via optional I/O box SPM-4210) |
| Auto Tracking | Support |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205 |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Privent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | IP address filtering |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 256GB |
| Memory | 1GB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -35°C~+55°(-31°F ~ +131°F) / * Start up should be done at above -25°C 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max. 23W, typical 14W |
| Mechanical | |
| Color / Material | Silver / Stainless(SUS316L) |
| Product Dimensions / Weight | Ø227×299.2mm(8.94×11.78″), 5.4 kg(11.93 lb) |
| Wall Mount | SBP-300WMS1, SBP-300WMS |
| Pole Mount | SBP-300PMS |
| Corner Mount | SBP-300KMS |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A IC Regulation ICES-003 Issue 7 Class A CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft) |
