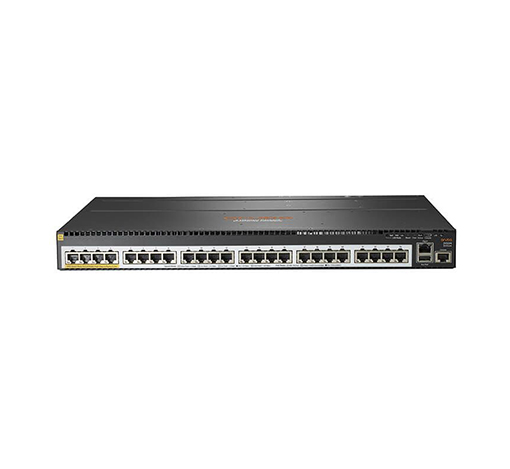

SWITCH ยี่ห้อ ARUBA รุ่น R0M68A

Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ OSPF routes: 200 ¦ RIP routes: 10000 ¦ Static routes: 256
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Encryption Algorithm MD5, SSL, TLS
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
Flash Memory 4 GB
Jumbo Frame Support 9220 bytes
MAC Address Table Size 32768 entries
Performance Latency (1 Gbps): 3.1 µs ¦ Latency (2.5 Gbps): 6.5 µs ¦ Latency (5 Gbps): 4.2 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Throughput: 112 Mpps ¦ Stacking bandwidth: 100 Gbps ¦ Switching capacity: 320 Gbps
PoE Budget 860 W
Ports 24 x 1/2.5/5GBase-T POE+
Power Over Ethernet (PoE) PoE+
Processor 1 x ARM Cortex-A9: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
Subtype 5 Gigabit Ethernet
Dimensions & Weight
Depth 12.8 in
Height 1.7 in
Weight 9.92 lbs
Width 17.4 in
