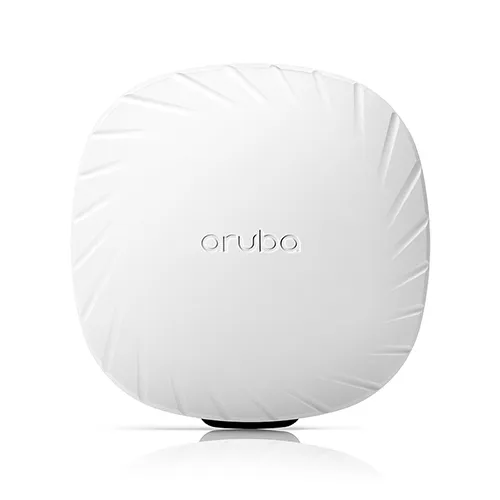

Access Point ยี่ห้อ Aruba รุ่น R8M98A
| SKU | R8M98A |
| Brand | HPE Aruba |
| Model | Aruba Access Point-503 (RW) Dual Radio 2×2:2 802.11ax Wi-Fi 6 Campus Access Point |
| Interface | RJ-45 : Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX, POE-PD: 48Vdc (nominal) 802.3af POE (class 3 or higher), 802.3az Energy Efficient Ethernet (EEE) USB 2.0 host interface (Type A connector) Capable of sourcing up to 100mA / 500mW to an attached device |
| Wi-Fi Radio Specifications | Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO |
| Wi-Fi Antennas | Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 1.7dBi in 2.4GHz and 4.8dBi in 5GHz. |
| Dimension | 145mm (W) x 145mm (D) x 51mm (H) (without mount bracket) |
| Weight | 255g |
| Power sources and consumption | Maximum (worst-case) power consumption: 10.9W |
| Mounting | A generic mount bracket to attach the AP-503 to suspended ceiling rails ships with the AP. |
| Warranty | Aruba’s hardware limited lifetime warranty |
