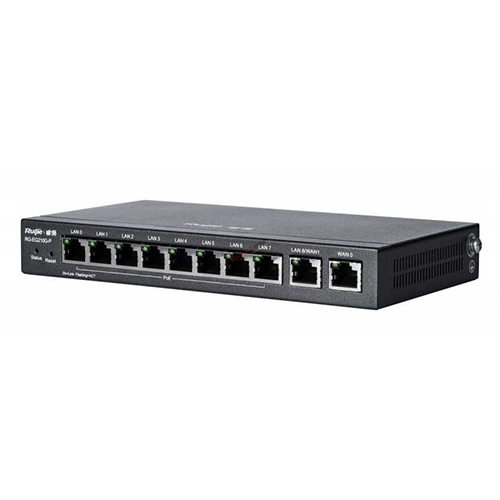

10 Port Gigabit Cloud Managed router ยี่ห้อ Ruijie รุ่น RG-EG210G-P
|
Product Specification |
|
|
Overview |
Reyee RG-EG210G-P Cloud Managed Router 2 WAN (Up to 4WAN) รองรับ 200 Concurrent users, พร้อม Switch Gigabit 10 Port จ่ายไฟ POE มาตรฐาน 802.3af/at สูงสุด 70W รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
|
Fixed ports |
10 10/100/1000M Base-T ports |
|
RAM |
256MB |
|
Flash |
16MB |
|
PoE |
External power adapter, maximum PoE output: 70W |
|
Maximum number of clients |
Up to 200 concurrent clients |
|
Recommended bandwidth |
600M asymmetric bandwidth (flow control disabled) |
|
Local power supply |
Support 220V AC local power supply |
|
Power consumption |
<80W |
|
Basic network features |
|
|
Network access |
PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
|
Routing |
Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
|
Security |
ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
|
Other protocols |
DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
|
Gateway |
|
|
Application recognition |
Built-in self-developed application signature database to identify applications |
|
Flow control |
Support custom flow control policies, IP-based automatic bandwidth assignment |
|
Traffic audit |
Real-time traffic audit, IP traffic visualization |
|
Behavior management |
Time-based and IP policy-based access control |
|
VPN |
IPsec VPN (8 tunnels) server and client |
|
Wireless management |
|
|
Management capacity |
In AC mode, the maximum management capacity is 500 |
|
AP management |
Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
|
Roaming |
Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
|
Switch management |
|
|
Management capacity |
Maximum manageable cloud managed switches: 128 |
|
Port management |
Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
|
Status display |
Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
|
Device management |
Per-device upgrade, batch upgrade |
|
Special features |
|
|
Featured solutions |
Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
|
Flexible management |
Eweb and Ruijie Cloud |
|
Physical specifications |
|
|
Dimensions |
202×107×28 (mm) |
|
Weight |
1.5kg |
|
Temperature |
Operating temperature: 0 – 40C |
|
Humidity |
Operating humidity: 10% ~ 90% (non-condensing) |
|
ประกัน |
3 ปี, Adapter 1 ปี |
