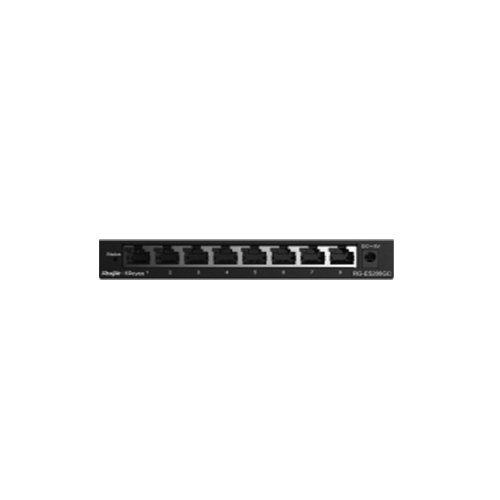

8-Port PoE Switch ยี่ห้อ Ruijie รุ่น RG-ES208GC
-
8-Port gigabit cloud managed non-PoE switch
-
Cost-Effective Smart Cloud Managed Switches
-
IP Camera Recognition, Unique Value for CCTV Network
-
Automatic Loop Prevention Ensures Service Continuity
-
Lifetime management on Ruijie Cloud at anytime anywhere
|
Ports |
8 10/100/1000 Base-T Ports |
|
Maximum output power per PoE port |
– |
|
Maximum PoE output power per switch |
– |
|
Switching capacity |
16Gbps |
|
Packet forwarding rate |
11.9Mpps |
|
Switching Cache |
1.5Mbit |
|
Speed / Duplex mode |
Auto / Half / Full duplex Speed auto / 10/ 100 /1000 |
|
MAC address |
4K |
|
VLAN |
Support 802.1Q VLAN |
|
Maximum Number of VLANs |
16 |
|
Allowed VLAN ID |
1 ~ 4094 |
|
Port-based VLAN |
Support |
|
Flow Control |
Support |
|
Loop Protection |
Support |
|
Unknown Unicast Suppression |
Support |
|
Multicast / Broadcast Storm Suppression |
Support |
|
Mirroring |
Many-to-One Mirroring |
|
Port Isolation |
Support |
|
Cable Testing |
Support |
|
ICMP Ping |
Support |
|
DNS |
DNS Client |
|
Telnet |
Support |
|
MACC |
Support |
|
Port Surge |
Common mode: 4KV |
|
Electrostatic Discharge |
Air discharge: 6KV |
|
Power Consumption |
≤ 4W |
|
Power supply |
External power adapter |
|
Dimensions (W x D x H) |
160 mm x 75 mm x 24 mm |
|
Weight |
0.49kg (with package) |
|
MTBF |
>200K |
|
Operating temperature |
0 to 40°C |
|
Storage temperature |
-40~70ºC |
|
Operating humidity |
10% to 90% RH |
|
Storage humidity |
5% to 95% RH |
|
Operating Altitude |
-500 ~ 5000 meters |
|
FAN |
Fanless |
|
Management |
Support management and configuration through web management interface, MACC cloud platform and mobile app |
|
Safety Standard Ground Resistance |
GB4943-2011, EN 62638-1 |
|
EMC |
GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035 |
|
Port management |
Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration |
|
Security |
Support broadcast storm suppression, port speed limit, port isolation |
|
L2 features |
Support port mirroring, loop protection, cable detection |
|
Management |
Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
