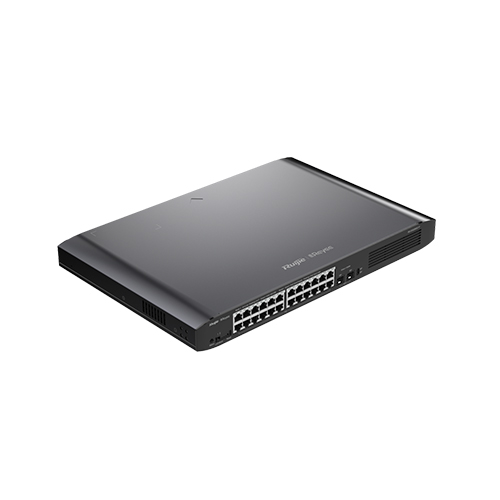

24-Port PoE Switch ยี่ห้อ Ruijie รุ่น RG-ES226GC-P
- รองรับการจัดการ Config รวมถึง Monitor อุปกรณ์ เช่น Status Port Up/Down, จ่ายไฟ POE, Traffic, ผ่าน Ruijie Cloud ทั้งบน Browser และ App ติดตั้งใน Smartphone
- Ruijie Cloud License ฟรี ตลอดชีพ
- รองรับ VLAN 802.1q ได้สูงสุด 16VLAN
- รองรับ Remote Rebbot POE
- รองรับ Real-Time Alarm
|
Product Specification |
|
|
Ports |
24 10/100/1000 Base-T ports (PoE/PoE+) |
|
Maximum output power per PoE port |
30W |
|
Maximum PoE output power per switch |
370W |
|
Switching capacity |
52Gbps |
|
Packet forwarding rate |
38.688Mpps |
|
Surge protection |
Common mode: 4KV |
|
Electrostatic discharge |
Air discharge: 6KV |
|
Power consumption |
≤400W |
|
Power supply |
Built-in power supply |
|
Dimensions (W x D x H) |
440x289x43.6mm |
|
MTBF |
>200K |
|
Operating temperature |
0 to 40°C |
|
Storage temperature |
-40~70ºC |
|
Operating humidity |
10% to 90% RH |
|
Storage humidity |
5% to 95% RH |
|
MAC capacity |
8K |
|
Static MAC address |
16 |
|
VLAN |
Support 802.1Q VLAN |
|
Port management |
Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
|
Security |
Support broadcast storm suppression, port speed limit, port isolation |
|
L2 features |
Support port mirroring, loop protection, cable detection |
|
Management |
Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
|
ประกัน |
3 ปี |
