Product Specification

Overview

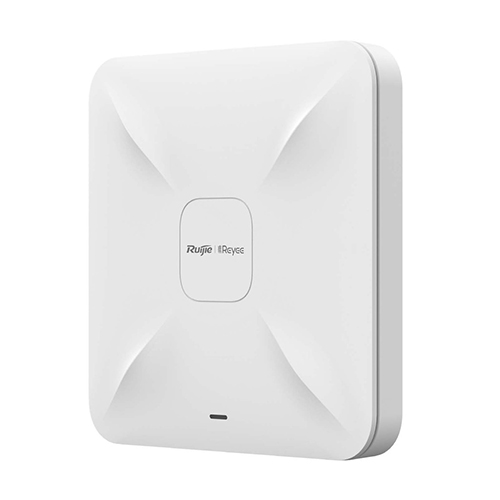

Reyee RG-RAP2200(E) Wireless Access Point Dual-Band มาตรฐาน ac Wave 2 ความเร็ว 1.267Gbps, 2 Port Lan Gigabit, รองรับ Ruijie Cloud

บริหารจัดการผ่าน Ruijie Cloud License แบบ Lifetime
ICT Spec อุปกรณ์กระจายสัญญาณไร้สาย (Access Point) แบบที่ 1

Radio

2.4GHz & 5GHz dual-band dual-stream

Protocol

Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

Spatial Streams

2.4G 2x2MIMO 5G 2x2MIMO

Max Throughput

Up to 400Mbps at 2.4G
Up to 867Mbps at 5G
1.267Gbp per AP

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity

11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
11ac HT20: -83dBm (MCS0), -57dBm (MCS9)
11ac HT40: -79dBm (MCS0), -57dBm (MCS9)
11ac HT80: -76dBm (MCS0), -51dBm (MCS9)

Maximum Transmit Power

5.725～5.850GHz：≤20dBm (EIRP)
5.150～5.350GHz：≤20dBm (EIRP)
2.4～2.4835GHz：≤20dBm (EIRP)

Adjustable Power

1dBm

Dimensions

194mm×194mm×35mm (excluding mounting kits)

Weight

0.45kg (excluding mounting kits)

Service Ports

2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE

Management Port

N/A

LED Indicator

Single indicator (green light)

Power Supply

Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
802.3af/802.3at PoE (ไม่มี POE Injector และ DC Adapter ในชุดอุปกรณ์)

Power Consumption

12.95W

Environment

Operating temperature: 0°C～40°C
Storage temperature: -40°C～70°C
Operating humidity: 5％～95％ (non-condensing)
Storage humidity: 5％～95％ (non-condensing)

Installation

Wall-mount, ceiling-mount

Safety Standard

GB4943, IEC 60950-1

EMC Standard

GB9254, EN301 489, EN50155: EN50121

Vibration Standard

IEC61373

Radio Standard

SRRC certification, EN300 328, EN301 893

MTBF

400000H

WLAN

Maximum number of clients: 110
Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz)
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment
Support local or remote management with app
Support local management with web
Support remote management with MACC platform

Platform management features

Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform

ประกัน

ประกันศูนย์ Ruijie Thailand 3 ปี
