RG-S2910C-24GT2XS-HP-E

Port Buffer : 1.5MB
RAM : 512MB
ARP Table : 1,000

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

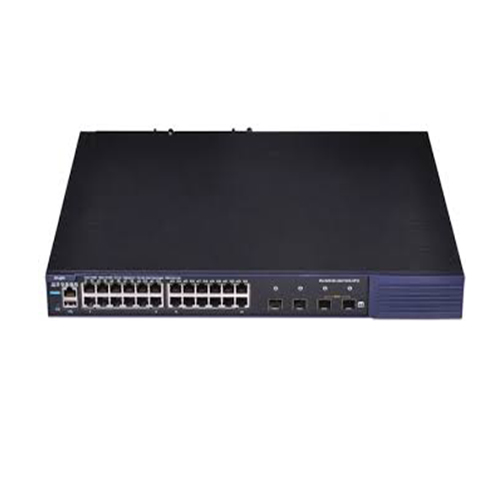

24-Port PoE Switch ยี่ห้อ Ruijie รุ่น RG-S2910C-24GT2XS-HP-E

Product Specification
Overview	Ruijie RG-S2910C-24GT2XS-HP-E L2-Managed Gigabit POE Switch 24 Port, 2 SFP+ ความเร็ว 10Gbps, รองรับ SDN OpenFlow, VLAN, QOS ใช้ร่วมกับ Module Power Supply RG-M5000E-AC500P: 370W RG-M5000E-DC500P: 370W RG-PA1150P-F: 740W
Ports	24 10/100/1000BASE-T ports (PoE/PoE+) 2 100/1000BASE-X SFP ports (combo) 2 1G/10GBASE-X SFP+ ports (non-combo)
Expansion Slots	2
Modular Power Slots	2
Fan Slots	Fixed
Expansion Modules	M2910-01XS M2910-01XT M2910-04XS
Management Ports	1 console port 1 USB 2.0 port
Switching Capacity	264Gbps
Packet Forwarding Rate	96Mpps
Max. Number of 10GE Ports	4
PoE	IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking
Port Buffer	1.5MB
RAM	512MB
ARP Table	1,000
MAC Address	16K
Routing Table Size (IPv4/IPv6)	500 (IPv4/IPv6)
ACL Entries	In: 1,500 Out: 500
VLAN	4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Guest VLAN
QinQ	Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching, 1:N VLAN switching
Link Aggregation	AP, LACP (maximum 8 ports can be aggregated), Cross devices AP, Flow balance
Port Mirroring	Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN # RG-S2910-10GT2SFP-P-E supports N:1/1:N port mirroring, Flow-based mirroring
Spanning Tree Protocols	IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard,Spanning Tree Root Guard(STRG)
DHCP	DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay,DHCP Snooping Option 82
Multiple Spanning Tree Protocol (MSTP) Instances	64
Maximum Aggregation Port (AP)	128
SDN	OpenFlow 1.0 & 1.3
VSU (Virtual Switch Unit)	Support (up to 9 stack members,to ensure the effectiveness of the use, 4 members are recommended* ), Local and distant stacking, Cross-chassis link aggregation in the stack, Stacking via 10G Ethernet ports # All models support the features above except RG-S2910-10GT2SFP-P-E
SCN (Simplicity Campus Network)	Support establishing large L2 network with core devices and achieve resources pooling via VSU and VSD. Only management on core devices is required and hence simplifies horizontal and vertical network management and maintenance. # All models support the features above except RG-S2910-10GT2SFP-P-E
Zero Configuration	CWMP(TR069)
L2 Features	MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast/Multicast/Unknown unicast storm control, IGMP v1/v2/v3 snooping, IPv6 MLD Snooping v1/v2,IGMP SGVL/IVGL, IGMP querier, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032 ERPS, Layer 2 protocol tunnel
Layer 2 Protocols	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1D, IEEE802.1w, IEEE802.1s
IPv4 Features	Ping, Traceroute
IPv6 Features	ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address
IPv4 Routing Protocols	Static Routing, RIP, OSPF v1/v2
Basic IPv6 Protocols	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert
IPv6 Routing Protocols	Static routing, RIPng, OSPF v3
Multicast	IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM-SMv6, Multicast static routing
G.8032	Support
ACL	Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect, Time-based ACL,Router ACL, VLAN ACL, Port-Based ACL
QoS	802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities; flow-based rate limiting with the minimum granularity of 8Kbps, sysnet, Dynamic QoS
Reliability	VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; Hot-swappable power module
EEE Format	Support IEEE 802.3az standard
Security	Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+;Change of Authorization; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection, CoA(RADIUS change of authorization),SCP (Secure Copy)Dynamic ARP Inspection(DAI)
Manageability	NMPv1/v2c/v3, CLI (Telnet / Console), RMON (1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web, SFLOW,HTTP or HTTPS # RG-S2910-10GT2SFP-P-E supports SNMPv2c, CLI (Telnet / Console), Syslog, RMON (1, 2, 3, 9), Web
Hot Patch	Support
Smart Temperature Control	Auto fan speed adjustment; Fan malfunction alerts; Fan status check # All models support the features above except RG-S2910-10GT2SFP-P-E
Smart Power Supply	Support power control and management
Other Protocols	FTP, TFTP, DNS client, DNS static
Dimensions (W x D x H) (mm)	440 × 320 × 44
Rack Height	1RU
Weight	5.8kg (gross weight)
MTBF (hours)	501032
Lightning Protection	6KV
Power Supply	AC power (RG-M5000E-AC500P): Rated voltage range: 100V to 240V AC Frequency: 50/60Hz Rated current range: 7A to 3.5A HVDC input: Input voltage range: 192V to 290V DC Input current range: 3.5A to 2.5A DC power (RG-M5000E-DC500P): Rated voltage range: -36V to -72V DC Rated current: 16.5A AC power (RG-RG-PA1150P-F): Rated voltage range: 100V to 240V AC Frequency: 50/60Hz Rated current: 10A HVDC input: Input voltage range: 192V to 290V DC Rated current range: 10A
Power Consumption	850W (with 24-port PoE+)
PoE Power	RG-M5000E-AC500P: 370W RG-M5000E-DC500P: 370W RG-PA1150P-F: 740W
Temperature	Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C
Humidity	Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH
Operating Altitude	-500m to 5,000m
ประกัน	3 ปี
