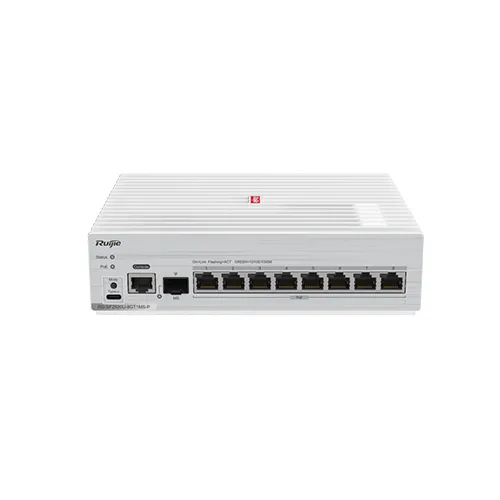

PoE Switch ยี่ห้อ Ruijie รุ่น RG-SF2920-8GT2MG2XS
|
Product Specification |
|
|
Overview |
Ruijie RG-SF2920-8GT2MG2XS-P, 8-Port Gigabit Switch, 10G SFP+ Port, 5G Port Lan, Surge protection 8kV, จ่ายไฟ POE 125W รองรับ VLAN, Link Aggregate, Dynamic Routing |
| Fixed ports | 8 × 10/100/1000M adaptive electrical ports 2 × 1000M/2.5G/5G adaptive electrical ports 2 × 1/10G SFP+ ports fixed single AC power supply; eEectrical ports 3-10 support PoE/PoE+; Maximum PoE output power: 125 W |
| Switching capacity | 76Gbps |
| Packet forwarding rate | 56.5Mbps |
| PoE | In compliance with IEEE 802.3af (15.4W) and IEEE 802.3at (30W) Automatic and energyefficient power supply management modes Warm start to implement uninterrupted power supply Port priority Scheduled power-on/off of PoE ports |
| MAC address table | Static MAC addresses MAC address filtering |
| 802.1Q VLAN | The following items are supported: 4094 IEEE 802.1Q VLANs Port-based VLAN |
| QinQ | Basic QinQ Flexible QinQ |
| L2 ring network technology | In compliance with the G.8032 international standard ring network protocol ERPS, switching time ≤ 50 ms, well compatible with other products that support this protocol |
| Link aggregation | Load balancing LACP dynamic aggregation The LACP priority, negotiation mode, and maximum number of ports that can be aggregated can be configured. Cross-VSU AP |
| Mirroring | Common service ports and aggregate ports can be used as the source and destination ports of SPAN. Flow- and VLAN-based SPAN One-to-one mirroring, one-to-many mirroring, many-to-one mirroring, RSPAN, ERSPAN Cross-device traffic mirroring |
| DHCP | The following are supported: DHCP server DHCP client DHCP snooping DHCP relay |
| IP routing | Static black hole routing, RIP, RIPng, OSPF, and OSPFv3 |
| ACL | Standard IP ACLs (IP-based hardware ACLs) Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs) MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Time-based ACLs ACL 80 IPv6 ACLs Global ACLs ACL redirection |
| QoS | The following are supported: Port traffic identification Port traffic rate limiting 802.1p/DSCP/ToS traffic classification Eight priority queues per port SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, RED/WRED queue scheduling mechanisms |
| Security features | Filtering of invalid MAC addresses Broadcast storm suppression Hierarchical management of administrators and password protection RADIUS and TACACS+ SSH and SSH V2.0 BPDU guard CPP, NFPP Port protection |
| EEE | EEE in compliance with IEEE 802.3az: When EEE is enabled, power consumption of ports is significantly reduced. |
| Management features | SNMP, CLI (telnet/console), RMON, SSH, syslog/debug, NTP/SNTP, FTP, TFTP, Web, RLDP |
| Size (W × D × H) (mm) | 210 × 250 × 55 |
| Power supply | AC input: Rated voltage range: 200 V to 240 V Maximum voltage range: 180 V to 264 V Frequency: 50 Hz to 60 Hz HVDC input: |
| Fan | Fanless design, natural heat dissipation |
| Temperature | Operating temperature: 0°C to 45°C Storage temperature: –40°C to 70°C |
| Humidity | Operating humidity: 5% to 95% RH Storage humidity: 5% to 95% RH |
|
ประกัน |
3 ปี |
