RP6504

UHD 4K (3840 x 2160) Native Resolution
LCD Panel with IR Touch
LAN & RS-232 Controllable
4 x HDMI | 1 x DisplayPort | 1 x VGA

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

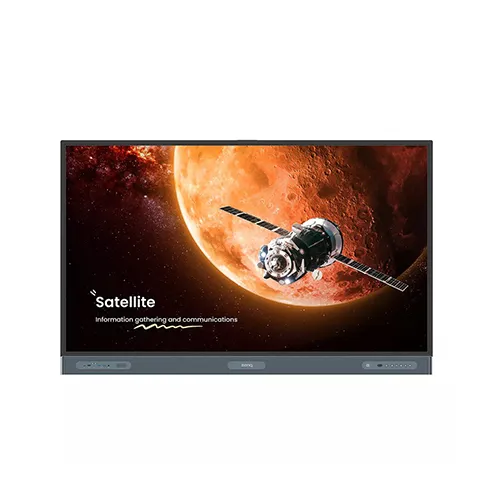

Interactive ยี่ห้อ BENQ รุ่น RP6504

Key Features

UHD 4K (3840 x 2160) Native Resolution
LCD Panel with IR Touch
LAN & RS-232 Controllable
4 x HDMI | 1 x DisplayPort | 1 x VGA

Display Size	65″
Resolution	3840 x 2160
Maximum Brightness	450 nits / cd/m²
Touchscreen Technology	Infrared (IR)
Inputs	Front: 1x HDMI 2.0 Rear: 3x HDMI 2.0 1x DisplayPort 1.2a 1x DE-15/DB-15 (VGA) 1x 1/8″ / 3.5 mm (Analog Audio) 1x 1/8″ / 3.5 mm
Outputs	Rear: 1x HDMI 2.0 1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Analog Audio)
Wireless	Wi-Fi 6 (802.11ax) / Bluetooth 5.2 *Via Included Adapter
USB I/O	Front: 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Touchscreen Control/Charging/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Control) 2x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Touchscreen Control/Charging/DisplayPort Alt Mode) 2x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video) Top: 1x USB-A 3.0 / 3.1/3.2 Gen 1
Ethernet I/O	2x RJ45 Gigabit Ethernet
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Control Input
Built-In Speakers	Yes, 3x 20 W
Media Card Reader	No

Display

Display Size	65″
Panel Type	LCD
Aspect Ratio	16:9
Display Orientation	Landscape
Resolution	3840 x 2160
Maximum Brightness	450 nits / cd/m²
Lighting System	Direct LED
Contrast Ratio	1200:1
Response Time	< 5 ms
Refresh Rate	60 Hz
Bit Depth / Color Support	Not Specified by Manufacturer
Viewing Angle (H x V)	178 x 178°
Screen Area	56.2 x 31.6″ / 1428.5 x 803.5 mm
Dot Pitch	0.37 x 0.37 mm
Pixels Per Inch (ppi)	68 ppi
Finish	Anti-Glare / Matte

Surface

Touchscreen Technology	Infrared (IR)
Multi-Touch Points	40
Hardness Rating	9H

Video

TV Tuner

Connectivity

Inputs	Front: 1x HDMI 2.0 Rear: 3x HDMI 2.0 1x DisplayPort 1.2a 1x DE-15/DB-15 (VGA) 1x 1/8″ / 3.5 mm (Analog Audio) 1x 1/8″ / 3.5 mm
Outputs	Rear: 1x HDMI 2.0 1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Analog Audio)
HDCP Support	Yes
Wireless	Wi-Fi 6 (802.11ax) / Bluetooth 5.2 *Via Included Adapter
NFC	Yes
USB I/O	Front: 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Touchscreen Control/Charging/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Control) 2x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Touchscreen Control/Charging/DisplayPort Alt Mode) 2x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video) Top: 1x USB-A 3.0 / 3.1/3.2 Gen 1
Ethernet I/O	2x RJ45 Gigabit Ethernet
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Control Input
Number of OPS/Expansion Slots	1
Ambient Light Sensor	Yes
Multi-Input Support (PIP/PBP)	Picture-by-Picture (PBP)

Speaker

Built-In Speakers	Yes, 3x 20 W
Speaker Configuration	2.1-Channel

Hardware

Smart TV	Android 13
CPU	Quad-Core: A78 (4 Core) A55 (4 Core)
Storage	64 GB
RAM	8 GB
OS Compatibility	Windows Linux macOS Chrome OS
Mobile App Compatible	Yes: Android & iOS
Media Card Reader	No
Built-In Mic	Yes

Supported File Formats

Supported Video File Types	3G2, 3GP, AVI, FLV, H.264/AVC, H.265/HEVC, M2TS, M4V, MJPEG, MKV, MOV, MP4, MPEG, MPEG2, MPEG4, MTS, PMP, RMVB, TP, TS, VC-1, VOB, VP8, VP9, WEBM, WMV, WMV3, Xvid
Supported Audio File Types	AAC, FLAC, MP3, OGG, PCM-WAV, WAV
Supported Photo File Types	BMP, GIF, JPEG, JPG, PNG

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 90%
Storage Humidity	10 to 90% (Non-Condensing)

Electrical

Power Consumption	Typical: 98.0 W Maximum: 426.8 W Standby: < 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

General

Certifications	TUV
Mounting-Hole Pattern	600 x 400 mm
Material of Construction	3.2T Glass
Environmental Protection	Dust-Resistant (IP5X)
IK Rating	No
Bezel Thickness	16.7 mm (Right/Top/Left)
Dimensions	58.6 x 36.9 x 4.6″ / 1488.4 x 937.6 x 117.7 mm
Weight	89.5 lb / 40.6 kg
