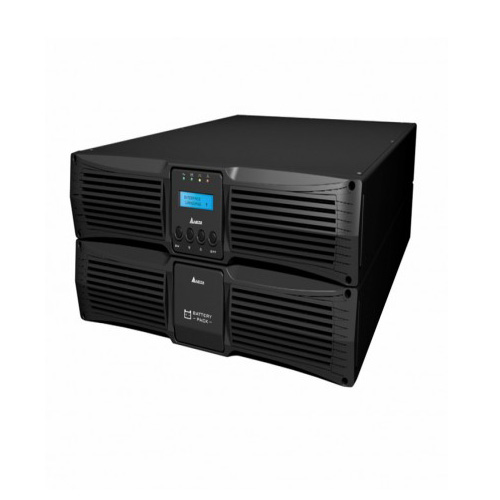

เครื่องสำรองไฟฟ้า UPS ยี่ห้อ Delta รุ่น RT-5K-3Y
| Model | RT-5K |
| Power Rating | 5kVA/4.5kW |
| Input | Nominal Voltage 200/208/220/230/240 Vac (single phase) |
| Voltage Range 100 ~ 300 Vac* | |
| Current Harmonic Distortion < 5% (full load) | |
| Power Factor > 0.99 (full load) | |
| Frequency 40 ~ 70 Hz | |
| Electrical Connection Terminal block | |
| Output | Voltage 200/208/220/230(default)/240 Vac (single phase) |
| Voltage Harmonic Distortion < 2% (linear load), <3% (non-linear load) | |
| Voltage Regulation ± 1% (static); ± 2% (typical) | |
| Frequency 50 or 60 ± 0.05 Hz | |
| Overload Capability 106 ~ 110%: 10 minutes; 111 ~ 125%: 5 minutes; 126 ~ 150%: 30 seconds | |
| Electrical Connection Terminal block | |
| Crest Factor 3:1 | |
| Interface | Standard RS232 x 1, SNMP slot x 1, Smart slot x 1, Parallel port x 1 |
| Conformance | Safety & EMC CE, TUV, EN62040-1; CISPR 22 Class A |
| Efficiency | AC-AC 92% (full load) |
| ECO Mode 96% (full load) | |
| Environment | Operating Temperature 0 ~ 40ºC |
| Relative Humidity 0 ~ 95% (non-condensing) | |
| Audible Noise 54 dBA** | |
| Dimensions (Wx Dx H) | 440 x 671 x 89 mm |
| Weight | 15 kg |
