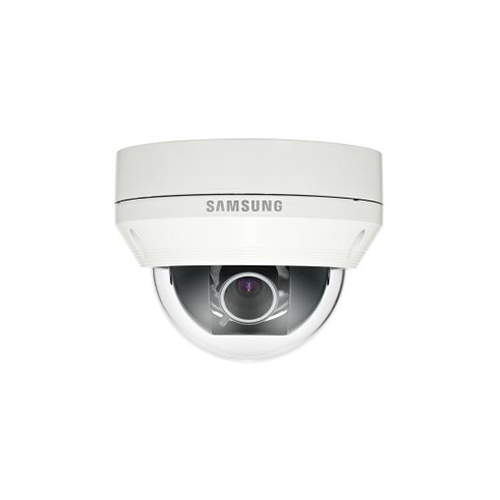

กล้องวงจรปิด Vandal-Resistant Dome ยี่ห้อ Wisenet (Samsung) รุ่น SCV-5083P

• Imaging Device 1/3″ 1.3M CMOS
• Total Pixels 1,312(H) x 1,069(V)
• Effective Pixels 1,305(H) x 1,049(V)
• Scanning System Progressive scan
• Synchronization Internal
• Horizontal Resolution Color : 1000TV lines, B/W : 1000TV lines
• S / N Ratio 52dB (AGC off, Weight on)
• Video Output CVBS : 1.0 Vpp / 75Ω composite
• Focal Length (Zoom Ratio) 2.8 ~ 10.5mm (3.8x) varifocal
• Max. Aperture Ratio F1.2
• Angular Field of View H : 91.5°(Wide) ~ 27.7°(Tele) / V : 68.3°(Wide) ~ 20.8°(Tele)
• Min. Object Distance 0.5m (1.64ft)
• Focus Control Manual
• Lens Type DC auto iris
• Mount Type Board type
