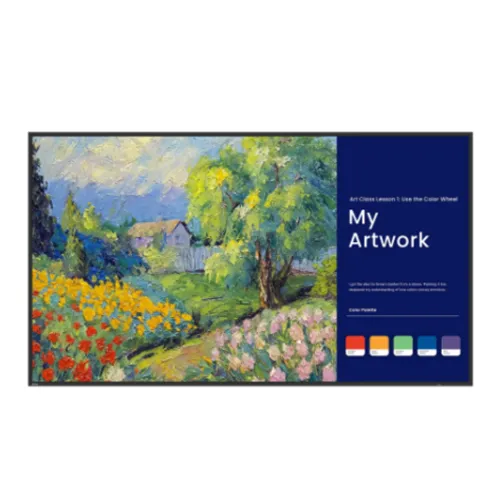

Digital Signage ยี่ห้อ BENQ   รุ่น SL8604

All Specifications

Panel

• Screen size : 86”
• Panel type : IPS
• Active area : 1895.0 × 1066.0 mm
• Aspect ratio : 16:9
• Resolution : UHD 3840 × 2160 pixels
• Response time : 8 ms
• Color depth : 10-bit
• Orientation : Landscape and Portrait
• Operation hours : 24 hours / 7 days
• Panel brightness (typical) : 500 nits
• Contrast ratio (typical) : 1200:1
• Color gamut : CIE 1976: 99% sRGB, 72% NTSC
• Light life (typical) : 50,000 hrs

Glass

• Anti-glare coating : Yes

System

• Memory | Storage : 8 GB | 64 GB
• OS : Android 13.0
• GPU : G52 MP8
• CPU : A73 × 4 + A53 × 4

Connectivity

• HDMI (in | out) : 2 × HDMI 2.0 | No
• USB-A : 2 × 2.0
• Ethernet LAN : 10 / 100 Mbps (Android) × 1
• RS-232 : 1 | 0

Built-in peripherals

• IR sensor : Yes
• Speaker : 2 × 12 W

Power

• ENERGY STAR® : Yes
• Power : AC 100-240V 50/60Hz
• Standby power consumption : <0.5 W
• Typical power consumption : 140.7 W

Physical

• Dimensions (W x H x D)  : 1927 × 1098.5 × 59.5 mm (75.9 × 43.2 × 2.3 inch)
• Shipping dimensions (W x H x D) : 2123 × 1247 × 225 mm (83.6 × 49.1 × 8.9 inch)
• Weight (product I shipping) : 49kg | 64kg (108.0 lbs | 141.1 lbs)
• Mount (screws) : VESA 600 × 400 mm (4 × M8 × 16L)

Environment

• Operating temperature : 0°C ~ 40°C | 32°F ~ 104°F
• Storage temperature : -10°C ~ 60°C | 14°F ~ 140°F
• Storage humidity : 10% ~ 80% RH non-condensing
• Operating humidity : 10% ~ 80% RH non-condensing

Software

• Wireless screen sharing : InstaShare 2
• Device management : DMS
• Account management : AMS

Accessories

• Cables : 1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
• Remote control : 1
