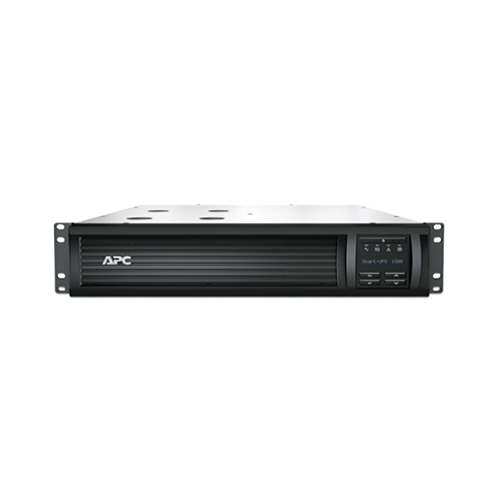

เครื่องสำรองไฟฟ้า UPS ยี่ห้อ APC รุ่น SMT1500RMI2UC-3Y
- Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other …
- Includes: Installation guide, Rack mounting support rails, USB cable
- Smart UPS – UPS ที่เหมาะสำหรับ Network, Server, Workstation ที่ต้องการคุณภาพไฟฟ้าที่สูงขึ้น (1 Phase : 1 Phase)
- Technology: Line interactive
- การรับประกัน: 3 ปี Onsite 8×5
Technical Specifications
Output
Max Configurable Power (Watts)
1.0kWatts / 1.5kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
151 – 302 Adjustable, 160 – 286V
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Replacement Battery
APCRBC159
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
144 Watts
Runtime
View Runtime Chart
Efficiency
Communications & Management
Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
86MM, 8.6CM
Maximum Width
432MM, 43.2CM
Maximum Depth
477MM, 47.7CM
Net Weight
26.1KG
Shipping weight
31.91KG
Shipping Height
251MM, 25.1CM
Shipping Width
594MM, 59.4CM
Shipping Depth
603MM, 60.3CM
Color
Black
Units per Pallet
8.0
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
46.0dBA
Online thermal dissipation
90.0BTU/hr
Conformance
Approvals
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TÜV, VDE
Standard warranty
3 years Onsite 8×5
