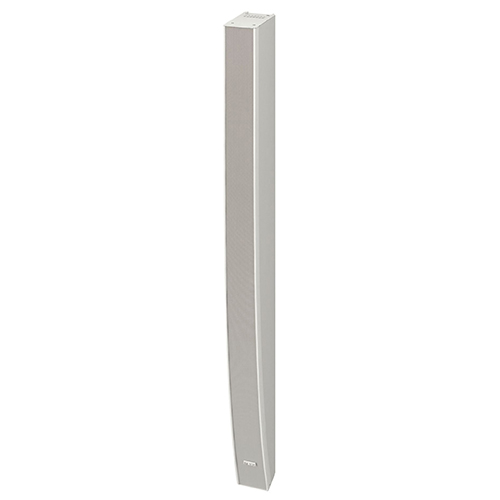

ลำโพงLine Array ยี่ห้อ TOA รุ่น SR-H3S

The SR-H3S Line array speaker forms a linear sound source by the internal speaker units arrayedvertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching transformer.

Specification

• Enclosure  : Bass-reflex type
• Power Handling Capacity : Continuous program: 360 W
• Rated Impedance : 8 Ω
• Sensitivity  : 92 dB (1 W, 1 m equivalent, measured at 8 m)
• Frequency Response  :90 Hz – 17 kHz (when recommended parameters are applied by the optional DP-SP3)
• Directivity Angle  : Horizontal: 90゜ / Vertical: 20゜
• Speaker Component  : 7 cm (2.8″) cone-type × 16
• Input Connector  : Removable input connector
• Finish  : Enclosure: MDF, white, urethane paint  / Front grille: Punched steel plate, white, acrylic paint
• Dimensions  : 84 (W) × 1177.2 (H) × 157 (D) mm (3.31″ × 46.35″ × 6.18″)
• Weight : 7.9 kg (17.42 lb)
• Option  : Matching transformer: MT-S0301  / Extension plate: SR-EP3  / Wall mounting bracket: SR-WB3  / Wall tilt bracket: SR-TB3  / Flying bracket: SR-FB3  / Stand adapter: SR-SA3 (Applicable stand: ST-34B)  / Digital speaker processor: DP-SP3
