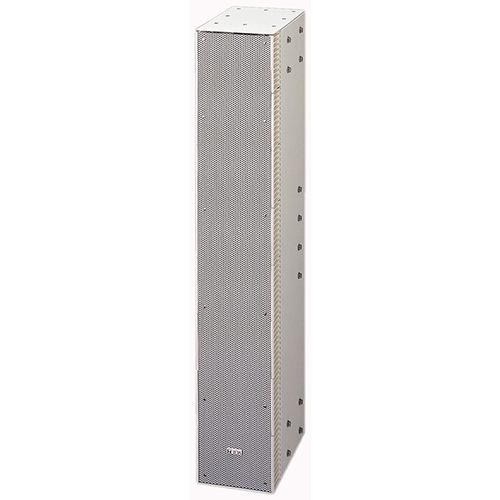

ลำโพงLine Array ยี่ห้อ TOA รุ่น SR-S4LWP

The SR-S4LWP is a two-way line array speaker ideal for long distance sound transmission andconfigures a line array by arranging speaker elements vertically close to each other.It satisfies the water protection requirements set down in the IPX4 Standard.It can be converted into the bi-amplifier drive system by changing the internal connection.It can be used for high-impedance applications with the installation of the optional MT-S0601Matching transformer

Specification

• Enclosure : Sealed type
• Power Handling Capacity : Continuous program: 600 W (single-amp mode) / Low 240 W, High 240 W (bi-amp mode)
• Rated Impedance : 8 Ω (single-amp mode) / Low 8 Ω, High 8 Ω (bi-amp mode)
• Sensitivity : 94 dB (1 W, 1 m)
• Frequency Response : 70 Hz – 20 kHz (when recommended parameters are applied by the optional DP-SP3)
• Crossover Frequency : 3.5 kHz
• Directivity Angle : Horizontal: 90゜, Vertical: 0゜ (within the range of speaker height)
• Speaker Component : Low frequency: 10 cm cone-type × 8 / High frequency: 2.5 cm balanced dome-type × 24
• Connected Cable : Direct cable withdrawal from internal speaker: φ8.6 mm, conductor cross section: 1.25 m㎡, 4-core cable, 3 m
• Operating Temperature : -10 ℃ to +50 ℃
• Water Protection : IPX4
• Finish    : Enclosure: Plywood, white, urethane coating / Front grille: Punched stainless steel, white, paint
• Dimensions : 160 (W) × 895 (H) × 255 (D) mm (excluding connected cable)
• Weight 16 kg
• Accessory : Bi-amplifier drive rating label …1, Bi-amplifier drive input indication label …1
• Option  : Matching transformer: MT-S0601, Extension plate: SR-EP4WP, Wall mounting bracket: SR-WB4WP, Wall tilt bracket: SR-TB4WP, Protection pad: SR-PP4, Digital speaker processor: DP-SP3
