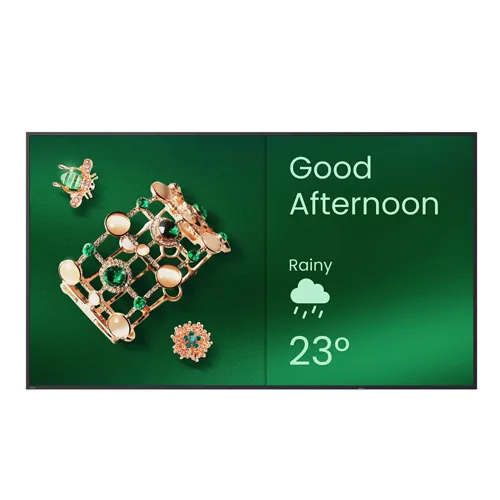

Digital Signage ยี่ห้อ BENQ   รุ่น ST5504

All Specifications

Panel

• Screen size : 55”
• Panel type : ADS
• Active area : 1209.6 × 680.4 mm
• Aspect ratio : 16:9
• Resolution : UHD 3840 × 2160 pixels
• Response time : 8 ms
• Color depth : 10-bit
• Orientation : Landscape and Portrait
• Operation hours : 18 hours / 7 days
• Panel brightness (typical) : 350 nits
• Contrast ratio (typical) : 1200:1
• Color gamut : CIE 1976: 99% sRGB, 72% NTSC
• Backlight life (typical) : 30,000 hrs

System

• GPU : G52 MC1
• CPU : A73 × 4
• Memory | Storage : 4GB I 32GB
• OS : Android 14.0

Connectivity

• HDMI (in | out) : 2 × HDMI 2.0 | No
• USB-A : 2 × 2.0
• 3.5 mm Line out : Earphone × 1
• Ethernet : 10 / 100 Mbps (Android) × 1
• RS-232 : 1 | 0

Built-in peripherals

• IR sensor : Yes
• Speaker : 2 × 12 W

Power

• ENERGY STAR®: Yes
• Power : AC 100-240V 50/60Hz
• Standby power consumption : <0.5 W
• Typical power consumption : 71 W

Physical

• Dimensions (W x H x D) :  1234.2 × 706.7 × 58.9 mm(48.6 × 27.8 × 2.3 inch)
• Shipping dimensions (W x H x D) :  1386 × 845 × 140 mm (54.6 × 33.3 × 5.5 inch )
• Weight (product I shipping) :  12 kg | 17.4 kg (26.5 lbs | 38.4 lbs)
• Mount (screws) :  VESA 400 × 200 mm (4 × M6 × 15L)

Environment
