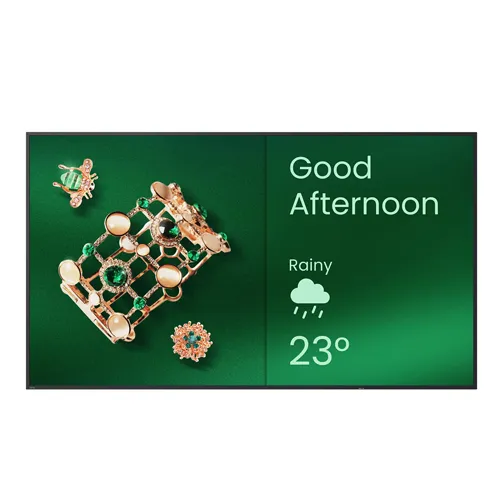

Digital Signage ยี่ห้อ BENQ   รุ่น ST6504

All Specifications

Panel

• Screen size : 65”
• Panel type : ADS
• Active area : 1428.5 × 803.5 mm
• Aspect ratio : 16:9
• Resolution : UHD 3840 × 2160 pixels
• Response time : 8 ms
• Color depth : 10-bit
• Orientation : Landscape and Portrait
• Operation hours : 18 hours / 7 days
• Panel brightness (typical) : 350 nits
• Contrast ratio (typical) : 1200:1
• Color gamut : CIE 1976: 99% sRGB, 72% NTSC
• Backlight life (typical) : 30,000 hrs

System

• GPU : G52 MC1
• CPU : A73 × 4
• Memory | Storage : 4GB I 32GB
• OS : Android 14.0

Connectivity

• HDMI (in | out) : 2 × HDMI 2.0 | No
• USB-A : 2 × 2.0
• 3.5 mm Line out : Earphone × 1
• Ethernet : 10 / 100 Mbps (Android) × 1
• RS-232 : 1 | 0

Built-in peripherals

• IR sensor : Yes
• Speaker : 2 × 12 W

Power

• ENERGY STAR® : Yes
• Power : AC 100-240V 50/60Hz
• Standby power consumption : <0.5 W
• Typical power consumption : 76 W

Physical

• Operating temperature : 0°C ~ 40°C | 32°F ~ 104°F
• Storage temperature : -10°C ~ 60°C | 14°F ~ 140°F
• Storage humidity : 10% ~ 80% RH non-condensing
• Operating humidity : 10% ~ 80% RH non-condensing

Software

• Wireless screen sharing : InstaShare 2
• Device management : DMS
• Broadcast system : X-Sign

Accessories

• Cables : 1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
• Remote control : 1
