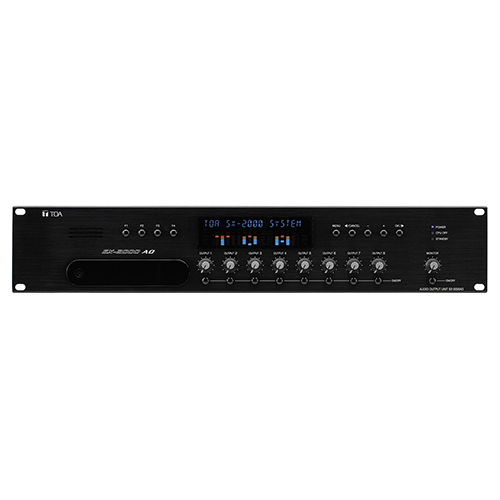

เครื่องขยายเสียง ยี่ห้อ TOA รุ่น SX-2000AO
- 8 line level audio outputs, 2 local audio inputs can be mixed to individual outputs
- 8 control inputs and 8 control outputs
- Two LAN ports for redundancy of the transmission path
- Analogue bypass in case of a CPU failure enables simultaneous all-zone calls
- Audio output levels (post-fader levels) indicated on the level meters separate for each output channel
- Volumes adjustable for each channel by front volume controls or by the SX-2000 software
- The volume controls can be locked by SX-2000 software
- Any output channel can be monitored using the internal speaker
- Two power inputs for dual-redundant power supply system
- The SX-2000 system requires Ethernet switches. For an EN54-16 compliant system, the certified IES-3000 series Ethernet switches are to be used
- For an EN54-16 compliant system, the SX-2000 system is to be powered by VX-3000DS, VX-2000DS or VX-3150DS
| onitor speaker volume control, ON/OFF switch, Operation button |
|
| Audio Output | 8 outputs, 0 dB*, suitable load: 600 Ω or above, electronically-balanced output changeable into transformer-balanced output (optional), removable terminal block (12 pins), monitoring possible using built-in speaker |
|---|---|
| Audio Output Characteristic | Frequency response: 20 Hz – 20 kHz Sampling frequency: 48 kHz D/A converter: 24 bit |
| Emergency Line Input | Emergency signals switched and sent to Input 1 (H, C, E) by relay removable terminal block (3 pins), Emergency audio message is output from all audio equipment connected when the power or an emergency-cutoff 24 V input is cut off. |
| Emergency-Cutoff 24V Input | 1 input, input current: 5 mA or less, removable terminal block (2 pins), cancellation possible using DIP switch |
SX Link
| Network I/F | 2 100BASE-TX circuits, RJ45 connector, decentralized installation possible |
|---|---|
| Connection Cable/Device | Shielded Category 5 twisted pair cable (CAT5-STP) To be connected via the switching hub specified by TOA Note: This network must be made completely independent from other LAN. |
| Maximum Cable Distance | 100 m (between this unit and a switching hub) |
Analog Link
| Input/Output Connector | Input: 1 input, RJ45 connector, Output: 1 output, RJ45 connector |
|---|---|
| Connection Cable | Shielded Category 5 twisted pair cable (CAT5-STP) (1 pair of audio wire + 1 pair of control wire (CPU OFF) + 1 pair of control wire (system reset/standby)+ 1 pair of connection check wire) |
| Maximum Cable Distance | Total length of analog link: 800 m |
CI/CO Link
| Usable Unit | SX-2000CI or SX-2000CO |
|---|---|
| Connector/Cable | 1 interface, RJ45 Connector, Shielded Category 5 twisted pair cable (CAT5-STP) |
| Maximum Cable Distance | 800 m |
| Control Input | 8 inputs, no-voltage make contact input, open voltage: 40 V DC or less, short-circuit current: 2 mA, photo coupler input, removable terminal block (6 pins) |
|---|---|
| Control Output | 8 outputs, Form C contact, no-voltage make contact output, relay contact output (withstand voltage: 40 V DC, control current: 2 – 300 mA), removable terminal block (6 pins) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | 35 % to 80 % RH (no condensation) |
| Finish | Panel: Aluminum, black, alumite Case: Surface-treated steel plate |
| Dimensions | 482 (W) × 88.4 (H) × 349 (D) mm |
| Weight | 6.2 kg |
| Accessory | Removable terminal plug (12 pins) …2, Removable terminal plug (6 pins) …8, Removable terminal plug (4 pins) …1, Removable terminal plug (3 pins) …1, Removable terminal plug (2 pins) …1, Rack mounting screw …4 |
| Option | Line transformer: IT-450 |
