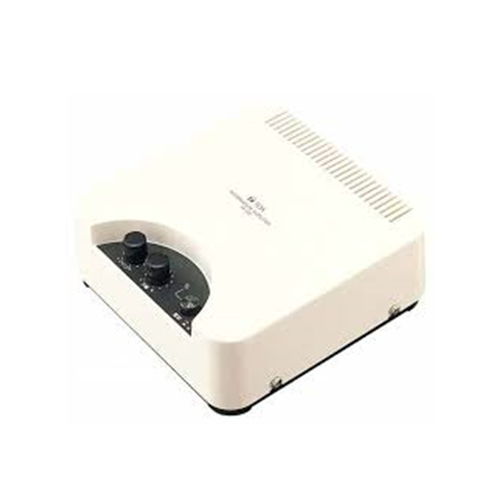

เครื่องขยายเสียง ยี่ห้อ TOA รุ่น TA-102 H

SPECIFICATIONS

• Power Source 220 – 240 V AC, 50/60 Hz
• Power Consumption 30 W
• Rated Output 10 W
• Distortion Under 3% (1 kHz, rated output)
• Frequency Response 100 – 12,000 Hz within ±3 dB
• Input Microphone input:600 Ù, –60 dBV, unbalanced
• Phone jack x 1, 5-pin DIN jack x 1 (Phone jack is given
• priority.)
• AUX input: 50 kÙ, –10 dBV, unbalanced
• RCA pin jack x 2
• Speaker Output High impedance, 1 kÙ
• S/N Ratio Over 60 dB
• Internal Chime Generator Single-tone chime, 330 Hz (remote operation by PM-600D’s talk switch)
• Muting Circuit AUX input automatically attenuates when microphone announcement is
• made, and is automatically restored upon announcement completion.
• (Attenuation level: 25 – 30 dB, restoration time: 4.5 seconds)
• Operating Temperature –10°C to 50°C
• Dimensions 180 (W) x 71 (H) x 180 (D) mm (projection excluded)
• Weight 1.8 kg
• Finish Case: ABS resin (off white)
• Chassis: Steel plate/paint (black)
