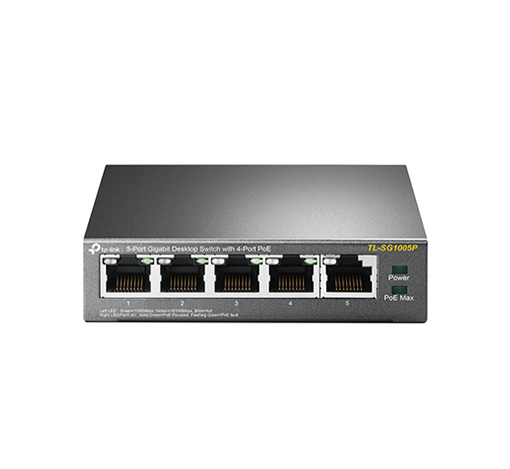

POE Switch 5 Port ยี่ห้อ TP – Link รุ่น TL-SG1005P
What This Product Does
TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.
Easy To Use
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
คุณสมบัติ Gigabit Switching Hub 5 Port TP-LINK TL-SG1005P (5,4 POE)
| Brand | TP-LINK |
| Model | TL-SG1005P |
| Network Interface | 5 x 10/100/1000Mbps RJ45 Ports ( 4 PoE Ports (Port 1 to Port 4) ) AUTO Negotiation/AUTO MDI/MDIX |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af |
| Transmission Method | Store-And-Forward |
| MAC Address Table | 2K |
| Backbound Bandwidth | 10Gbps |
| LED Indicators | Power, Link/Act, PoE Status, PoE Max |
| Features | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Fan Quantity | Fanless |
| Network Media | 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| PoE | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W |
| Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Power Consumption | 63.31W (max. with 56w PoE device connected) 4.26W (max. no PoE device connected) |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | TL-SG1005P, Power Adapter, Installation Guide |
| Package Dimension | (W x D x H) : 13.00 x 19.00 x 13.00 cm |
| Gross Weight | 0.83 KG |
| Volume | 3,211.00 cm3 |
