TL-SG1210MP

9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W^*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Up to 250 m data and power transmission range under Extend Mode^**

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

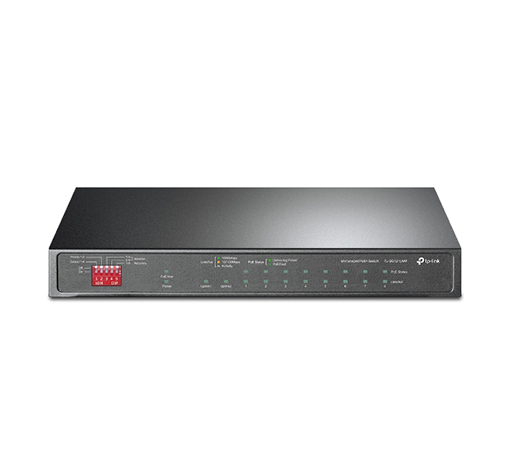

POE Switch 10 Port ยี่ห้อ TP – Link รุ่น TL-SG1210MP

9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W^*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Up to 250 m data and power transmission range under Extend Mode^**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
Plug and play with no configuration required
Fanless design reduces power consumption and works silently in its location

HARDWARE FEATURES
Interface	• 9× 10/100/1000 Mbps RJ45 Ports
	• 1× 1000 Mbps Combo SFP/RJ45 Port
	• AUTO Negotiation
	• AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	• EIA/TIA-568 100Ω STP (maximum 100m)
	• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
	• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate	14.88 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant
	• PoE Ports: Ports 1–8
	• Power Supply: 123 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	20 Gbps
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption	• 7.93 W (220V / 50Hz with no PD connected)
Max Power Consumption	• 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation	• 27.04 BTU/h (220V / 50Hz with no PD connected)
Max Heat Dissipation	• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs
	• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
	• Priority Mode Button (Ports 1–2)
	• Isolation Mode Button (Ports 1–4 / 5-8)
	• PoE Auto Recovery (Ports 1-8)
	• Mac Address Auto-Learning and Auto-Aging
	• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Warranty	Limited Lifetime
