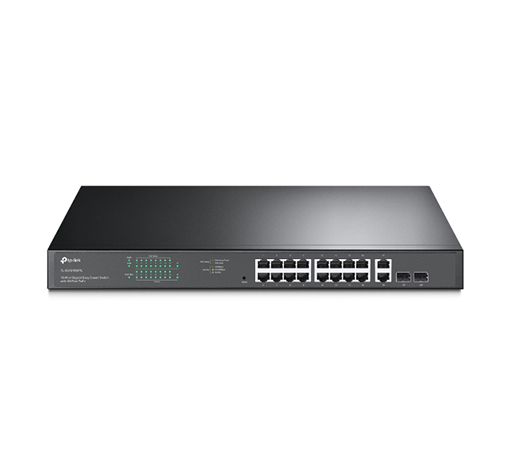

POE Switch 28 Port ยี่ห้อ TP – Link รุ่น TL-SG1218MPE
- 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
- PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.
- Port Priority is able to guarantee the quality of sensitive application like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit SFP Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE+ Ports: Ports 1–16 • Power Supply: 250 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 21.4 W (220/50Hz. no PD connected) • 296.3 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 72.97 BTU/h (no PD connected) • 1010.38 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery |
| VLAN | • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Management | • Web-based GUI • Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG1218MPE • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
