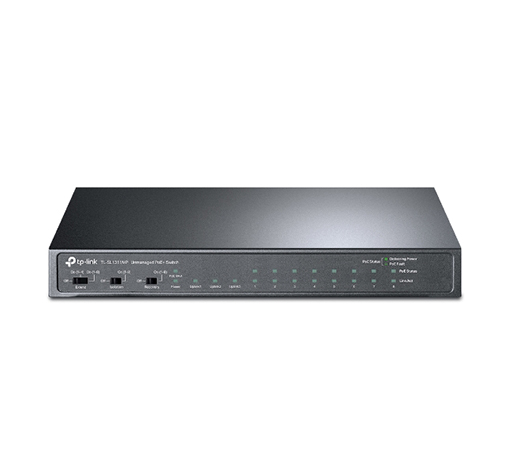

POE Switch 8 Port ยี่ห้อ TP – Link รุ่น TL-SL1311MP
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 124 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
| HARDWARE FEATURES | |
| Interface | • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port |
| • AUTO Negotiation | |
| • AUTO MDI/MDIX | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant |
| • PoE Ports: Ports 1–8 | |
| • Power Supply: 124 W | |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | • 5.95 W (220/50 Hz. no PD connected) |
| • 140.92 W (220/50 Hz. with 124 W PD connected) | |
| Max Heat Dissipation | • 20.29 BTU/h (no PD connected) |
| • 480.54 BTU/h (220/50 Hz. with 124 W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs |
| • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) | |
| • Isolation Mode Button (Ports 1–8) | |
| • PoE Auto Recovery Button (Ports 1–8) | |
| • Mac Address Auto-Learning and Auto-Aging | |
| • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode | |
| Warranty | Limited Lifetime |
