TLD-2016-6

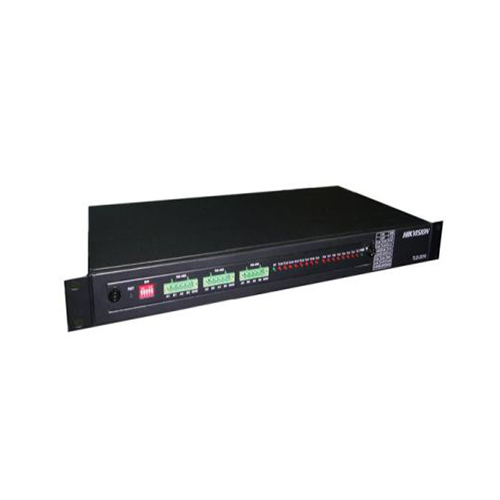

 Traffic Accessories ยี่ห้อ HIKVISION รุ่น TLD-2016-6

• 16-ch signal light AC signal interface
• 5 pin switch to set band rate, address and upload method
• 16-ch lights to show status
• Detection and communication unit using micro-controller, much stable and reliable
• Input interface with voltage protection, light/electric separation
• Real-time output of light status

Specification

TLD-2016-6

• Interface Of AC Signal : 16ch
• RS485 Output Interface : 6
• DC Output Interface : 5V DC output
• Pin Switch : 5ch
• Light Of Status : 16
• Range Of Detection Voltage : 140VAC～270VAC，50Hz/60Hz
• Working Voltage : 220VAC@50Hz/60Hz，100VAC～240VAC Consumption
• Consumption : <5W
• Environment Temperature : -30℃～+70℃
• Environment Humidity : 5%~95%@40℃
• Dimensions : 440mm(W)×44mm(H)×213.5mm(D)
