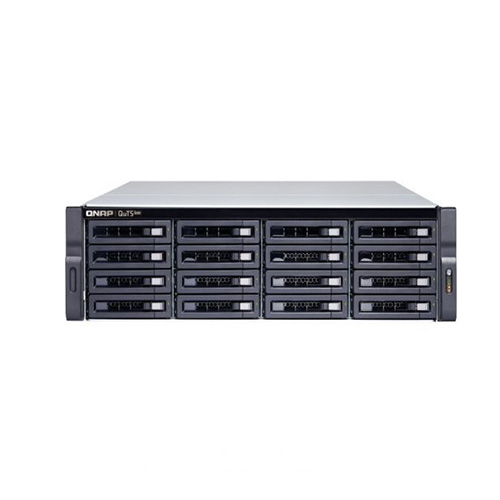

NETWORK ATTACHED STORAGE (NAS) ยี่ห้อ Qnap รุ่น TS-1683XU-RP-E2124-16G
| CPU | Intel® Xeon® E-2124 4-core 3.3 GHz processor (burst up to 4.3 GHz) |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 16 GB UDIMM DDR4 ECC (2 x 8GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| Gigabit Ethernet Port (RJ45) | 4 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 4 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x8 (CPU) Slot 3: PCIe Gen 3 x4 (CPU) Slot 4: PCIe Gen 3 x4 (CPU) Slot 4 is preinstalled with a 10GbE network adapter
Card dimensions for PCIe slot 1~Slot 4：220 x 78.9 x 18.76 mm / 8.66 x 3.10 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen 2 10Gbps 4 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 3U Rackmount |
| LED Indicators | HDD 1-16, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130 × 481 × 573.5 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 13.76 kg |
| Weight (Gross) | 21.79 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 500W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 130.43 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 80mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 10000 |
