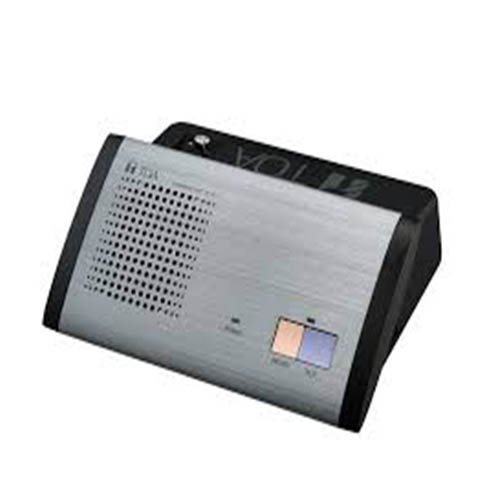

ชุดไมค์ประชุมระบบดิจิตอล ยี่ห้อ TOA รุ่น TS-811

• Power Source 24 V DC (supplied from the TS-918 Expansion Unit (option))
• Current Consumption Max. 60 mA
• Modulation Method Frequency modulation
• Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
  • • Audio channel 2: 8.10 MHz
    • Audio channel 3: 8.55 MHz
    • Audio channel 4: 9.15 MHz
    • Control channel: 6.45 MHz
    • Reception: Audio channel: 1.95 MHz
• Input Microphone terminal: XLR-4-31 type (dedicated for connecting the optional TS-903 or TS-904)
• Output Monitor speaker: 8 Ω, 0.2 WHeadphone: φ3.5 mm mini Jack (3P:monaural) × 2
• Connection Terminal RJ45 connector
• LED Indicator Speech indicator (flashes at communication failure),Power indicator (flashes at communication failure)
• Function Monitor volume control, Headphone volume control, Priority speech function
• Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F).
• Operating Humidity 90 %RH or less (no condensation)
• Finish Top panel: ABS resin, gray metallic, paint, semi-gloss
• Dimensions 210 (W) × 68.6 (H) × 152 (D) mm (8.27″ × 2.7″ × 5.98″)
• Weight 560 g (1.23 lb)
• Option Microphone: TS-903, TS-904 (Select either one.)
