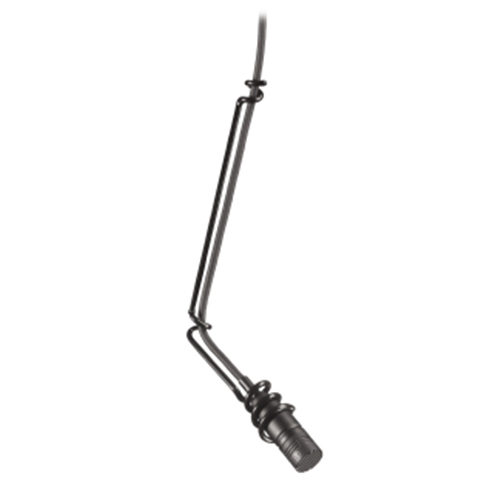

Cardioid Condenser Hanging Microphone ยี่ห้อ Audio-Technica รุ่น U853A
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: –42 dB (7.9 mV) re 1V at 1 Pa Battery: –43 dB (7.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 133 dB, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 109 dB, 1 kHz at Max SPL Battery: 99 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Off, on-flat, on-roll-off |
| Weight (Microphone) | 0.5 oz (14 g) |
| Weight (Power Module) | 4.9 oz (139 g) |
| Weight | 14 g |
| Cable | 25.0′ (7.6 m) long (permanently attached to microphone), 0.13″ (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector |
| Dimensions | 1.34″ (34.0 mm) long, 0.48″ (12.2 mm) diameter |
| Dimensions (Power Module) | 3.31″ (84.0 mm) H x 2.48″ (63.0 mm) W x 0.87″ (22.0 mm) D |
| Dimensions (Microphone) | 1.34″ (34.0 mm) long, 0.48″ (12.2 mm) diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Output Connector | Integral 3-pin XLRM-type |
| Optional Interchangeable Elements | UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°) |
| Accessories Included | AT8153 two-stage foam windscreen; AT8451 steel hanger; AT8531 power module; AT8438 5/8″-27 stand adapter; battery |
| Audio-Technica Case Style | M12 |
