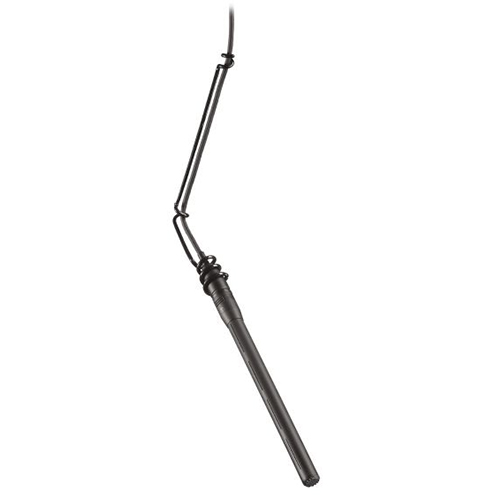

UniLine® Condenser Hanging Microphones ยี่ห้อ Audio-Technica รุ่น U853PMU

The U853PMU is a wide-range miniature condenser microphone with a UniLine® (line cardioid) polar pattern. It is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications. The combination of small size and excellent response makes the microphone ideal for suspension over choirs, instrumental groups or theater stages.

The microphone requires 11V to 52V phantom power for operation

The microphone is equipped with UniGuard® RFI-shielding technology, which offers outstanding rejection of radio frequency interference (RFI).

The microphone’s UniLine® (line cardioid) polar pattern provides a 90° angle of acceptance. Additional interchangeable elements with omnidirectional (360°), cardioid (120°) and hypercardioid (100°) pickup patterns are available.

The microphone includes a 7.6 m (25′) permanently attached miniature cable. Its free end connects to the provided AT8534 wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity. The power module features a white-finished standard electrical cover plate for easy, secure installation. Output connections on the power module are screw terminals.

Switches in the power module permit a +10 dB gain setting for extra sensitive pickup as well as a choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass UniSteep® filter) to help control undesired ambient noise.

The microphone comes equipped with a wall/ceiling plate power module, a vinyl-coated steel hanger for positioning over a choir/orchestra/stage, a two-stage foam windscreen and a 5/8″-27 stand adapter. The microphone is enclosed in a rugged housing with a low-reflectance black finish. It is also available with white housing, cable, hanger and windscreen as the U853PMWU.

Features

• Wall/ceiling plate power module permits permanent installation in standard, single-gang electrical box
• UniLine® polar pattern provides narrow 90º acceptance angle
• Low-profile design with low-reflectance finish for minimum visibility
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• UniSteep® filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
• Available interchangeable elements permit angle of acceptance from 90º to 360º
• Steel hanger positions microphone over choirs, instrumental groups and theater stages
• Available in two colors: black (U853PMU) and white (U853PMWU)
