UV420A

1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840×2160) and compatible with 1080P, 720P and other resolutions. 4K 60FPS
12X and 5X optical zoom lens, with 70° & 80° FOV without distortion.
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

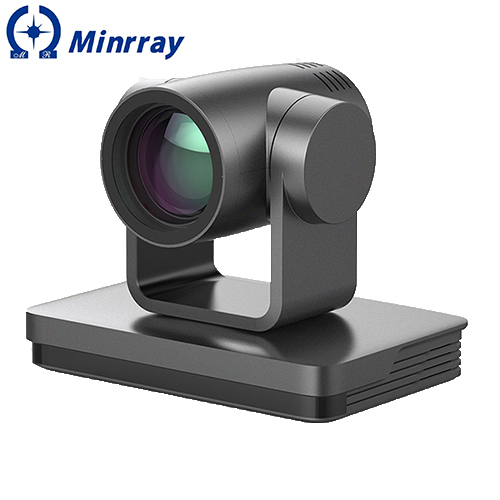

Ultra HD 4K PTZ Camera ยี่ห้อ MINRRAY รุ่น UV420A

Ultra HD, Wide View Angle, Multi-protocols
The Ultra HD 4K PTZ Camera-UV420 offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.

Features

1. 4K Ultra HD

1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840×2160) and compatible with 1080P, 720P and other resolutions. 4K 60FPS

2. Optical Zoom Lens

12X and 5X optical zoom lens, with 70° & 80° FOV without distortion.

3. Trinity image auto-focusing technology

Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.

4. Low Noise and High SNR

Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.5. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.6. Multiple preset
Up to 255 presets (10 presets for remote control).

7. IR & Wireless Remote Control
IR remote control (default)

8. Wireless remote control (optional):
2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.

Specifications

Model	UV420A		UV420B
Optical Zoom	12X	5X
FOV	Horizontal: 6.55˚（tele）～69.4˚（wide）	Horizontal: 26.51°（tele）～79.18°（wide）
	vertical: 3.66˚（tele）～42.8˚（wide）	vertical: 15.29°（tele）～49.22°（wide）
Aperture	F1.6 – F2.8±5%	F2.0 – F2.8±5%
Image Sensor	1/2.8 Inch SONY CMOS Sensor	1/2.5 Inch SONY CMOS Sensor
Effective pixels	8.51M; 16:9	8.51M; 16:9
Video Format	HDMIVideo Output Format:
	4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50,
	1080P30, 1080P25, 720P60, 720P50
	USB3.0 Video Output Format:
	YUY2/NV12:
	1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30,
	800×448P30, 640×360P30, 640×480P30, 320×176P30
	MJPEG/H.264:
	3840×2160P30,1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30,
	800×448P30, 640×360P30, 640×480P30, 320×176P30
	USB3.0 compatible with USB2.0:
	YUY2/NV12: 640×360P30, 640×480P30, 320×176P30
	MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30,
	960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30
Minimum Illumination	0.05Lux (F1.8, AGC ON)
DNR	2D & 3D DNR
White Balance	Auto / Manual/ One Push/ Specified Color Temperature
Focus	Auto / Manual/ One Push
Exposure mode	Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority
Aperture	F1.8 – F11, CLOSE
shutter speed	1/25 – 1/10000
BLC	OFF/ON
Dynamic range	OFF/ Dynamic Level Adjustment
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR	≥50dB

Input/Output Interface
Interfaces	HDMI, LAN(POE), USB3.0（Type B, compatible with USB2.0）, A-IN, RS232-in & out;
	RS422（Compatible with RS485）, Dial switch, DC12V, Power Switch
Video Compression	LAN: H.264, H.265
	USB 3.0: MJPG, H264, YUY2, NV12
Audio-in Interface	Double track 3.5mm linear Input
Audio out	HDMI, LAN, USB3.0
Audio Compression	AAC, MP3, G.711A
LAN	10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
Network Protocol	RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset
Control Interface	RS232-IN, RS232-OUT, RS422 (compatible withRS485)
Serial Protocol	VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400
USB Communication Protocol	UVC（video），UAC（audio）
Power Interface	HEC3800 outlet (DC12V)
Power Adapter	Input: AC110V-AC220V ; Output: DC12V/2.5A
Input Voltage	DC12V±10%
Input Current	<1A
Power Consumption	<12W
PTZ Parameter
Pan Rotation	-170°～+170°
Tilt Rotation	-30°～+90°
Pan Control Speed	0.1°/s～100°/s
Tilt Control Speed	0.1°/s～45°/s
Preset Speed	Pan: 100°/s，Tilt: 45°/s
Preset Number	255 Presets (10 presets by remote control)
Other Parameter
Stored Temperature	-10℃～+60℃
Stored Humidity	20%～95%
Working Temperature	-10℃～+50℃
Working Humidity	20%～80%
Dimension	181（L）mm × 115mm（W）× 149mm（H）
Weight(around)	1.15 kg
Application	Indoor
Accessory
Package	Power supply,RS232 control cable,USB3.0 connection cable, Remote controller, User Manual
Optional Accessories	Ceiling / Wall Mount (Extra Cost)
