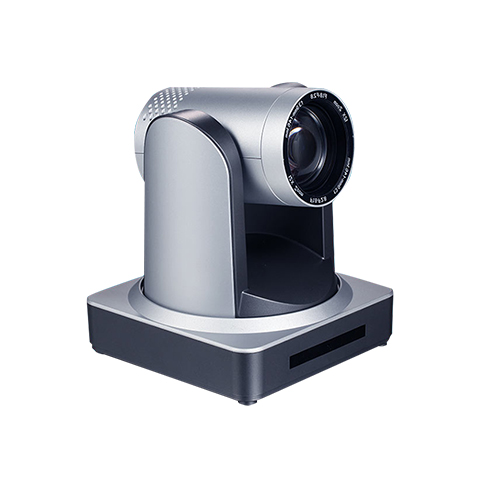

HD Conference Camera ยี่ห้อ RAZR รุ่น UV510A-05-U2
Perfect functions,superior performance and rich interfaces.Advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition.
It supports H.264/H.265 encoding which make motion video fluent and clear even under less than ideal bandwidth conditions
| ensor | 1/2.8 inch high quality HD CMOS sensor |
|---|---|
| Optical Zoom | 5x optical zoom f=3.1~15.5mm |
| Effective Pixels | 16: 9, 2.07 megapixel |
| Video format | 176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5 |
| View Angle | 20°(tele)–83.7°(wide) |
| AV | F1.8 – F2.8 |
| Digital Zoom | 10X |
| Built-in MCU | n/a |
| Communication Protocol | Support FECC remote control protocol |
| Camera Control | n/a |
| Video Encoding | n/a |
| Mainstream video Input interface & resolution | n/a |
| Auxiliary stream video Input interface & resolution | n/a |
| Video Output (two channels) | n/a |
| Dual stream supported | n/a |
| Audio Encoding | n/a |
| Microphone array | n/a |
| Audio processing technology | n/a |
| LAN Protocol | n/a |
| Bandwidth requirement | n/a |
| Security | n/a |
| Control ways | “Remote control+ TV interface Webpage management” |
| Language | Chinese/English |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual/A key focus |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness,Color,Sarutation,Contrast,Sharpness,B/W mode, Gamma curve |
| SNR | >55dB |
| USB2.0 Output | 1 |
| LAN | 1 |
| Image Code Stream | n/a |
| Video Compression Format | H.264, H.265 |
| RS-232 Input | 1 |
| RS-232 Output | 1 |
| Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps |
| Audio Input Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC/MP3/G.711A |
| HD IP Interface | 100M IP port(100BASE-TX) |
| Network Protocol | “RTSP,RTMP,ONVIF,GB/T28181,Network VISCA Control Protocol, Support remote upgrade, reboot and reset” |
| Power Interface | HEC3800 outlet (DC12V) |
| Pan Rotation | ±170° |
| Tilt Rotation | -30°~+90° Tilt Control Speed |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets by remote controller) |
| Supply Adapter | AC110V-AC220V to DC12V/1.5A |
| Input Voltage | DC12V±10% |
| Input Current | 1A (Max) |
| Consumption | 12W (Max) |
| Working Temperature | -10°C~ +50°C |
| Dimension | 150mmX150mmX167.5mm 1.4KG |
| Weight | 1.4KG |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
| Accessory | 12V/1.5A power supply, RS232 control line, USB2.0 connection line (U2 model), remote controller, Manual, warranty card |
