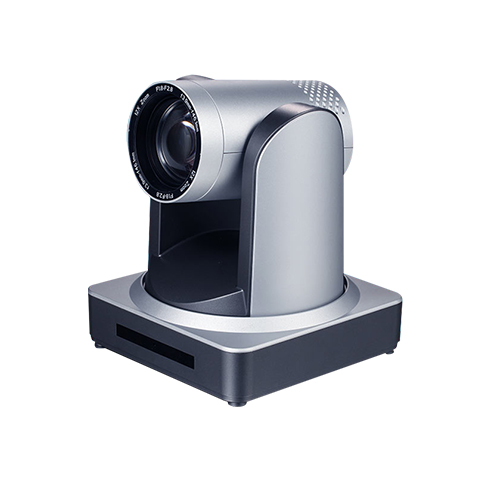

HD Conference Camera ยี่ห้อ RAZR รุ่น UV510A-12
กล้อง Perfect functions,superior performance and rich interfaces.Advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition.
FEATURES
Superb high-definition image
- UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 Multiple lens
Leading auto focus technology
- Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Low noise and high SNR
- Low noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is
Audio input Interface
- Support 16000, 32000,44100, 48000 sampling frequency and support AAC, MP3,PCM audio coding.
Wide-range, quiet and quick Pan/Tilt mechanism
- By adopting step driving motor mechanism, UV510A camera works extremely quiet
Multiple network protocol
- Support ONVIF, RTSP,RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)
Wide application
- Tele-education, Lecture Capture, Webcasting,Videoconferencing,Tele-training, Tele-medicine, Interrogation and Emergency Command
Low-power sleepfunction
- Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
Specifications
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
|---|---|
| Optical Zoom | 12X, f＝3.9～46.8mm |
| Effective Pixels | 16: 9, 2.07 megapixel |
| Video format | 1080P60/50/30/25/59.94/29.97, 1080i60/50/59.94, 720P60/50/30/25/59.94/29.97 |
| View Angle | 6.3°(tele)–72.5°(wide) |
| AV | F1.8 – F2.4 |
| Digital Zoom | 10X |
| Built-in MCU | n/a |
| Communication Protocol | n/a |
| Camera Control | Support FECC remote control protocol |
| Video Encoding | n/a |
| Mainstream video Input interface & resolution | n/a |
| Auxiliary stream video Input interface & resolution | n/a |
| Video Output (two channels) | n/a |
| Dual stream supported | n/a |
| Audio Encoding | n/a |
| Microphone array | n/a |
| Audio processing technology | n/a |
| LAN Protocol | n/a |
| Bandwidth requirement | n/a |
| Security | n/a |
| Control ways | “Remote control+ TV interface Webpage management” |
| Language | “Remote control+ TV interface Webpage management” |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness,Color,Sarutation,Contrast,Sharpness,B/W mode, Gamma curve |
| SNR | >55dB |
| Panoramic Camera | n/a |
| Lens | n/a |
| View Angle (D/H/V) | n/a |
| DVI Input | n/a |
| HDMI Output | 1 |
| 3G-SDI Output | 1 |
| USB2.0 Output | n/a |
| LAN | 1 |
| Image Code Stream | Dual stream output |
| Video Compression Format | H.264, H.265, Dual Stream output |
| RS-232 Input | 1 |
| RS-232 Output | 1 |
| RS-485 Input | 1 |
| XLR Input | n/a |
| RCA Input | n/a |
| HDMI audio | n/a |
| Microphone array | n/a |
| Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps |
| Audio Input Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC/MP3/PCM Audio compression |
| HD IP Interface | 100M IP port(100BASE-TX); 5G WiFi (optional), Support VISCA protocol control through IP port. |
| Network Protocol | RTSP,RTMP,ONVIF,GBT28181 |
| Power Interface | HEC3800 outlet (DC12V) |
| Pan Rotation | ±170° |
| Tilt Rotation | -30°~+90° Tilt Control Speed |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets by remote controller) |
| Supply Adapter | AC110V-AC220V to DC12V/1.5A |
| Input Voltage | DC12V±10% |
| Input Current | 1A (Max) |
| Consumption | 12W (Max) |
| Working Temperature | -10°C~ +50°C |
| Dimension | 150mmX150mmX167.5mm |
| Weight | 1.4KG |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
| Accessory | 12V/1.5A power supply, RS232 control line remote controller, Manual, warranty card |
