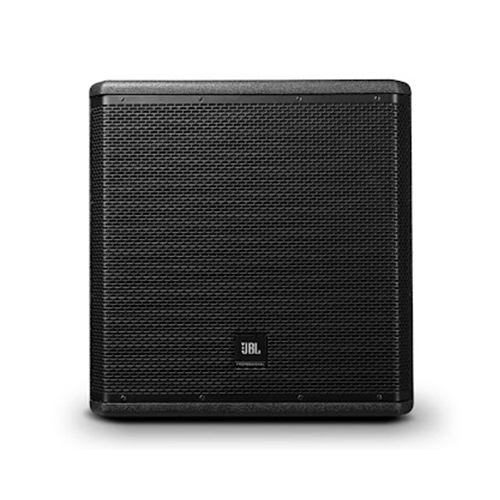

ตู้ลำโพง ยี่ห้อ JBL รุ่น VPX718S

VPX718S uses an 18” (457mm) JBL 2044G woofer in a front vented enclosure to reproduce low bands with extended frequency response and low distortion, and to stand continuous power up to 500Watts.

The subwoofer system offers compatibility with a variety of cabling schemes. A pair of Neutrik® Speakon® NL-4 connectors are provided and are shipped with pins +1/-1 connected to the woofer. To meet different cabling requirements, the woofer can also be re-configured to work through pins +2/-2.

VPX718S is equipped with a 35 mm socket for installation of a full range satellite speaker weighting up to 50 kg (110 lbs). Two handles are provided for easy transit and set-up of the subwoofer. Its enclosure is made from premium plywood, finished in rugged DuraFlex™ coating and braced to maximize low frequency performance. The CNC-machined 16-gauge steel grille is backed with acoustically transparent fabrics to provide additional driver protection and give a very professional appearance.

Features:

• 18” JBL 2044G woofer for extended low frequency output
• Large vent port for reduced distortion
• Enclosure constructed of premium plywood and finished in black DuraFlex™ coating
• Heavy-duty 16-gauge protective screen backed steel grille
• Top mounted socket for use with satellite speakers
• Low profile and compact design

Specifications

• Frequency Range (-10 dB):     40 Hz – 200 Hz
• Frequency Response (±3 dB):      45 Hz – 200 Hz
• Input Connection Modes:      Internally configurable, +1/-1 or +2/-2
• Recommended Crossover:    80 Hz, 24 – 48 dB/octave
• Power Rating (Continuous/Program/Peak):   500 W/1000 W/2000 W, 2 hrs   400 W/800 W/1600 W, 100 hrs
• Maximum SPL:  127 dB continuous (133 dB peak)
• Sensitivity (1w@1m):     94 dB SPL; 100 dB SPL
• LF Driver:       1 × 18” (457 mm) JBL 2044G woofer
• Nominal Impedance:      4 Ohms
• Mounting:      Top mounted 35 mm socket for optional SS3-BK pole
• Enclosure:      Rectangular, 18 mm, plywood
• Finish:   Black DuraFlexTM finish
• Grille:    Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing
• Input Connectors:     2 × Neutrik® Speakon® NL-4
• Dimensions (H × W × D) :548 mm × 533 mm × 700 mm (21.6 in × 21.0 in × 27.6 in)
• Net Weigh:     30.96 Kg (68.26 lbs)
• Optional Accessories:     SS3-BK: Satellite speaker pole
