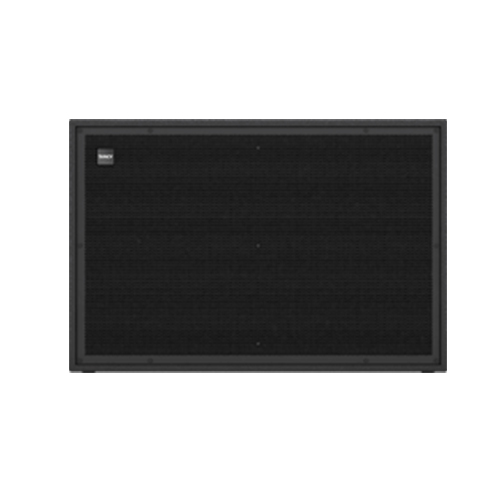

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VSX215B
Twin 15″ Horn Loaded Passive Subwoofer for Touring and Installation Applications
Product Features
- Large scale horn loaded subwoofer for touring and installation applications
- 2,000 Watts continuous, 8,000 Watts peak power
- Twin 15″ drivers for extended low frequency response to 40 Hz
- Extremely efficient horn design for maximum sound pressure levels
- Ideal for foreground music playback in clubs, bars, theatres and AV applications
- Internally braced plywood enclosure
- Finished with a hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- Integral M10 rigging points for ease of installation
- Handles ergonomically integrated into sides of the cabinet
- Neutrik speakON* NL4 and barrier strip connectors for input and link output
- Designed and engineered in the U.K.
Specification
System
| Frequency Response | 48 Hz – 350 Hz, ±3 dB 40 Hz – 450 kHz, -10 dB |
| Recommended Low Pass Crosssover | 90 – 250 Hz, 24 dB/Oct |
| Nominal Dispersion | Half space |
| Power Handling (IEC) | 2000 W continuous, 8000 W peak |
| Sensitivity | 108 dB (1 W @ 1 m) |
| Maximum SPL | 141 dB continuous, 147 dB peak |
| Impedance | 4 O (parallel) 2 x 8 O (discrete) |
| Components | 2 x 15′ (381 mm) LF driver |
Enclosure
| Connectors | 2 x Neutrik speakON* NL4 2 x barrier strip terminals |
| Wiring | |
| Parallel | Pins 1+ / 1- input, pins 2+ / 2- link |
| Discrete | Pins 1+ / 1- input (SUB 1), pins 2+ / 2- input (SUB 2) |
| Dimensions H x W x D | 708 x 1052 x 851 mm (27.9 x 41.4 x 33.5′) |
| Net weight | 90.2 kg (198.4 lbs) |
| Construction | 18 mm (¾ ‘) plywood |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Flying Hardware | M10 x 22 points |
Accessories
| Blanking plate for optional VTH pole mount |
