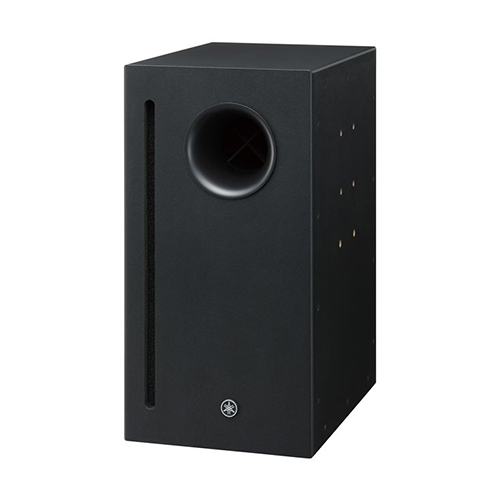

ตู้ลำโพง ยี่ห้อ YAMAHA รุ่น VXS10S
10″ dual voice coil subwoofer for low impedance systems
|
VXS3SB / VXS3SW |
VXS10S / VXS10SW |
VXS10ST / VXS10STW |
||
|---|---|---|---|---|
| ประเภทลำโพง | SR-Bass™ type Subwoofer | Bass-reflex type Subwoofer | Bass-reflex type Subwoofer | |
| ช่วงความถี่ (-10dB) | 65Hz-180Hz | 45Hz – 250Hz | 45Hz – 250Hz | |
| ส่วนประกอบ | LF | 3.5″ Cone | 10″ Dual Voice Coil | 10″ Dual Voice Coil |
| เพาเวอร์ เรตติง | NOISE | 20W | 100W + 100W | – |
| PGM | 40W | 200W + 200W | – | |
| PEAK | 80W | – | – | |
| ค่าความต้านทานที่กำหนด | 8Ω | 8Ω + 8Ω | – | |
| Satellite impedance | 8Ω load per satellite output recommended *1 | 8Ω load per satellite output recommended *2 | 8Ω load per satellite output recommended *2 | |
| Transformer taps | 100V | 15W, 7.5W, 3.8W | – | 200W (50Ω), 100W (100Ω), 50W (200Ω) |
| 70V | 15W, 7.5W, 3.8W, 1.9W | – | 200W (25Ω), 100W (50Ω), 50W (100Ω), 25W (200Ω) | |
| SPL | Sensitivity (1W; 1m on axis) | 79dB SPL *3 | 96dB SPL *3 | 96dB SPL *3 |
| Peak (Calculated) | 98dB SPL *4 | 125dB SPL *4 | – | |
| I/O คอนเน็กเตอร์ | TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1～ST4) | Input: 1x Euroblock (4P)(CH1: + / -, CH2: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) | Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) | |
| วงจรป้องกัน | โหลด โปรเท็กชัน | Full-range power limiting for protecting network and transducers | Full-range power limiting for protecting network and transducers | Full-range power limiting for protecting network and transducers |
| Shape | Rectangular | Rectangular | Rectangular | |
| Cabinet material | ABS | MDF | MDF | |
| วัสดุเคลือบผิว | VXS3SB:Black (approximate value:Munsell N3) VXS3SW:White (approximate value:Munsell N9) | VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1) | VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1) | |
| ขนาด | กว้าง | 322mm (12.7″) *5 | 260mm (10.2″) *5 | 260mm (10.2″) *5 |
| สูง | 162mm (6.4″) *5 | 500mm (19.7″) *5 | 500mm (19.7″) *5 | |
| ลึก | 118mm (4.6″) *5 | 389mm (15.3″) *5 | 389mm (15.3″) *5 | |
| น้ำหนักรวม | 2.7kg (6.0 lbs) *5 | 16.5kg (36.4lbs) *5 | 19.5kg (43.0lbs) *5 | |
| อุปกรณ์เสริม | Mounting bracket, Safety wire, Spacer, Screw, Masking sheet | Wall mount bracket | Wall mount bracket | |
| การบรรจุภัณฑ์ | Packaged each | Packaged each | Packaged each | |
| Certificate | NFPA70, CE, RoHS | CE, EAC, RoHS | CE, EAC, RoHS | |
| EN54-24 compliance | – | – | – | |
