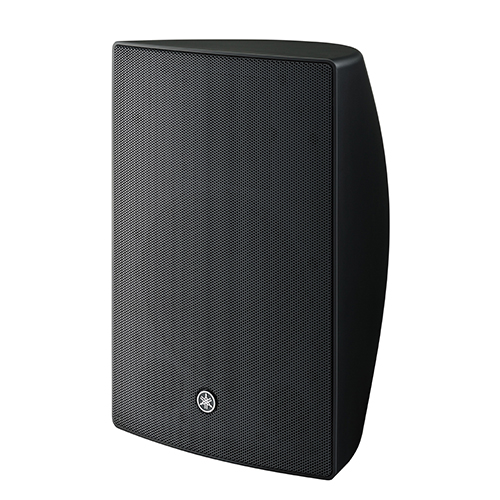

ตู้ลำโพง ยี่ห้อ YAMAHA รุ่น VXS8
8″ cone woofer with a 1″ soft dome tweeter
|
VXS8/ VXS8W |
VXS8-VA / VXS8-VAW |
VXS5 / VXS5W |
VXS5-VA / VXS5-VAW |
||
|---|---|---|---|---|---|
| ประเภทลำโพง | 2-way, Bass-reflex | 2-way, Bass-reflex | 2-way, Bass-reflex | 2-way, Bass-reflex | |
| ช่วงความถี่ (-10dB) | 51Hz – 20kHz | 51Hz – 20kHz | 62Hz – 20kHz | 62Hz – 20kHz | |
| ส่วนประกอบ | LF | 8″ Cone | 8″ Cone | 5.25″ Cone | 5.25″ Cone |
| เพาเวอร์ เรตติง | NOISE | 90W | 90W | 75W | 75W |
| PGM | 180W | 180W | 150W | 150W | |
| ค่าความต้านทานที่กำหนด | 8Ω | 8Ω | 8Ω | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 91dB SPL | 89dB SPL | 89dB SPL | 88dB SPL |
| Peak (Calculated) | 117dB SPL | 115dB SPL | 114dB SPL | 113dB SPL | |
| I/O คอนเน็กเตอร์ | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | 1x Ceramic terminal block (3P) (input: +/-, Earth) | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | 1x Ceramic terminal block (3P) (input: +/-, Earth) | |
| Shape | Rectangular | Rectangular | Rectangular | Rectangular | |
| Cabinet material | ABS | ABS | ABS | ABS | |
| วัสดุเคลือบผิว | VXS8:Black / VXS8W:White | VXS8-VA:Black / VXS8-VAW:White | VXS5:Black / VXS5W:White | VXS5-VA:Black / VXS5-VAW:White | |
| Waterproof | IP35 | IP35 | IP35 | IP35 | |
| ขนาด | กว้าง | 278mm (10.9″) | 278mm (10.9″) | 176mm (6.9″) | 176mm (6.9″) |
| สูง | 430mm (16.9″) | 430mm (16.9″) | 280mm (11.0″) | 280mm (11.0″) | |
| ลึก | 239mm (9.4″) | 239mm (9.4″) | 163mm (6.4″) | 163mm (6.4″) | |
| น้ำหนักรวม | 8.2kg (18.1lbs) | 8.2kg (18.1lbs) | 3.6kg (7.9lbs) | 3.6kg (7.9lbs) | |
| Nominal coverage | H | 100° | 100° | 120° | 120° |
| V | 100° | 100° | 120° | 120° | |
| Components | HF | 1″ Soft dome | 1″ Soft dome | 0.75″ Soft dome | 0.75″ Soft dome |
| Crossover | 2.8kHz | 2.8kHz | 3kHz | 3kHz | |
| Transformer taps | 100V | 60W (170Ω), 30W (330Ω), 15W (670Ω) | 60W (170Ω), 30W (330Ω), 15W (670Ω) | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) |
| 70V | 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) | 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) | |
| Accessories | Wall / Ceiling mount bracket, Terminal cover | Wall / Ceiling mount bracket, Terminal cover | Wall / Ceiling mount bracket, Terminal cover | Wall / Ceiling mount bracket, Terminal cover | |
| Others | Packaged in pairs | Packaged in pairs | Packaged in pairs | Packaged in pairs | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | CE, RoHS | UL1480, NFPA70, CE, EAC, RoHS | CE, RoHS | |
| EN54-24 compliance | – | Yes (DoP No. 0359-CPR-00406) | – | Yes (DoP No. 0359-CPR-00406) | |
