| SKU |

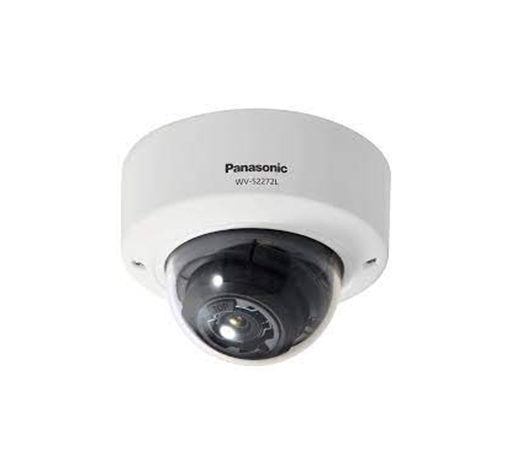

WV-S2272L |
| Features |
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer |
Panasonic |
| Camera Signal |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
61~100 Feet |
| Resolution |
8 Megapixel |
| Lens Type |
Varifocal |
| Lens Size |
4.3-8.6mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, JPEG, H.265 |
| Durability |
Indoor, Vandal Resistant |
| Voltage |
12vDC, PoE |
| Dimensions (W x H) |
ø129.5 mm x 103.5 mm (H) {ø5-1/8 inches x 4-1/16 inches (H)} Dome radius 41.5 mm {1-5/8 inches} |
| Electronic Shutter |
[30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device |
1/1.8 type CMOS image sensor |
| Minimum Scene Illumination |
Color: 0.09 lx, BW: 0.05 lx (F1.5, Maximum shutter: Off (1/30s), AGC: 11), BW: 0 lx (F1.5, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit), Color: 0.006 lx, BW: 0.003 lx (F1.5, Maximum shutter: max. 16/30s, AGC: 11) |
| Operating Humidity |
10 to 90 % (no condensation) |
| Operating Temperature |
-10 °C to +50 °C (+14 °F to +122 °F) |
| Power Consumption |
12VDC: Approx. 10.7 W, PoE: Approx. 11.0 W |
| Privacy Zone |
On / Off, Up to 8 zones available |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255. |
| Angle of View |
[16: 9 mode] *[4:3 mode] is not supported. Horizontal: 52° (TELE) – 101° (WIDE), Vertical: 29° (TELE) – 55° (WIDE) |
| Motion Detection Tracking |
On / Off, 4 areas available |
| Automatic White Balance |
ATW1/ATW2/AWC |
| IR Distance |
30m/98ft |
| Audio |
Yes |
| Auto Gain Control |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| ONVIF |
Yes |
