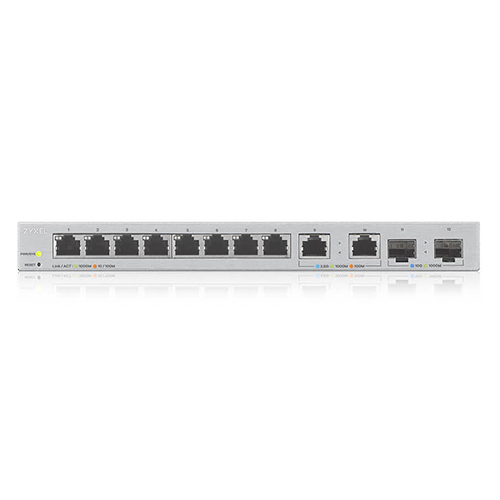

12-Port Web-Managed Multi-Gigabit Switch with 2-Port 2.5G and 2-Port 10G SFP+ ยี่ห้อ ZYXEL รุ่น XGS1210-12
Standard
- IEEE 802.3 10BASE-TX Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE802.3ab 1000BASE-T
- IEEE 802.3bz 2500BASE-T Gigabit Ethernet
- SFF-8431
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3x full duplex operation and flow control
Performance
- Switching capacity: 66 Gbps
- Switching forwarding rate: 49 Mpps
- MAC address table: 16 K
- Packet buffer: 1.5 MB
- Jumbo frame support up to 12 KB
Features
- Web-based management
- Auto-MDI/MDIX in all ports
- System password
- VLAN (Port supported)
- Port-based QoS
- 802.1p QoS
- Broadcast storm control
- Loop detection/prevention
- DHCP client
- Static Link aggregation
- Port mirroring
- Weighted Round Robin (WRR) priority QoS
- IGMP snooping v1/v2/and v3 compatible
- Supported multicast groups: 128
- Firmware update
Interface
- 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
- 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
- 2 x SFP+
- Hardware reset button
LED Indicator
- PWR: Power
- Port 1~8: Link/Activity
- Green: 1000 Mbps
- Amber: 10/100 Mbps
- Port 9~10: Link/Activity
- Sky Blue : 2.5Gbps
- Green : 1Gbps
- Amber: 100Mbps
- Port 11~12: Link/Activity
- Blue: 10Gbps
- Green : 1000Mbps
Power Supply
- AC-to-DC external power adapter
- Input: 100-240V~50-60Hz
- Output: 12V DC/1.5A
- Item dimensions (WxDxH): 250 x 104 x 27mm(9.84” x 4.10” x 1.06”)
- Item weight: 768g (1.69 lb.)
- Packing dimensions (WxDxH): 306 x 225 x 64mm (12.04” x 8.86” x 1.06”)
- Packing weight: 1217g (2.68 lb)
Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment
- Temperature: -40°C to 70°C (-32°F to 158°F)
- Humidity: 10% to 90% (Non-condensing)
- Safety: CE-LVD, BSMI
- EMC: CE, FCC, EAC, BSMI, Class B
- Switch
- Power adapter
- Quick Start Guide
- Safety warning and DoC
