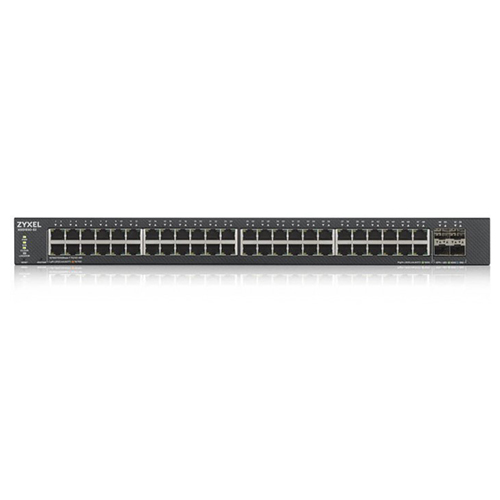

48-port GbE Smart Managed PoE Switch with 4 SFP+ Uplink ยี่ห้อ ZYXEL รุ่น XGS1930-52HP
Standard Compliance
- IEEE 802.3 10BASE-T Ethernet*
- IEEE 802.3u 100BASE-TX Ethernet*
- IEEE 802.3ab 1000BASE-T Ethernet*
- IEEE 802.3z 1000BASE-X*
- IEEE 802.3ae 10-Gigabit Ethernet Over Fiber*
- IEEE 802.3af PoE*
- IEEE 802.3at PoE Plus*
- IEEE 802.3az EEE*
- IEEE 802.3x flow control
- IEEE 802.3ad LACP aggregation*
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1p Class of Service (CoS) prioritization*
- IEEE 802.1X port authentication*
Resilience and Availability
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.3ad LACP (Max # Trunks/ Links per Trunk): 12/8 for 28/28HP, 24/8 for 52/52HP*
- Loop guard*
- Dual configuration files
- Dual images*
Traffic Control
- 802.1Q Static VLANs*/Dynamic VLANs: 1K/4K
- Support up to 4K VLAN ID*
- ndependent VLAN Learning (IVL)*
- L2PT
- Port-based VLAN*
- Voice VLAN*
- VLAN trunking
- GVRP
Security
- 802.1X*
- Port security*
- MAC authentication*
- Static MAC forwarding
- SSL*
- Static ARP
- Policy-based security filtering
- Port isolation
- MAC search
- Guest VLAN*
- PPPoE relay agent
- PPPoE option 82
- PPPoE IA
- Interface related trap enable/ disable (by port)
- CPU protection
- SHA2 HTTPS certification*
- Login authentication by RADIUS*
- RADIUS accounting
- Authorization on RADIUS*
- Multiple RADIUS servers*
- 802.1x VLAN and bandwidth assignment by RADIUS*
- ACL packet filtering (IPv4/IPv6)*
Specifications
- Total port count 52
- 100/1000 Mbps 48
- 10 Gigabit SFP+ 4
- PoE ports 48
- Total PoE budget (Watts) 375
- High power PoE 802.3at Yes
- Switching capacity (Gbps) 176
- Forwarding rate (Mpps) 130.9
- Packet buffer (byte) 1.5 M
- MAC address table 16 K
- Jumbo frame (byte) 9 K
- L3 forwarding table Max. 512 IPv4 entries; Max. 512 IPv6 entries
- Routing table 32
- IP interface (IPv4/IPv6) 32/32
- Flash/RAM 32 MB/512 MB
- Input 100 to 240 V AC, 50/60 Hz
- Max. power consumption (watt) 498.4
