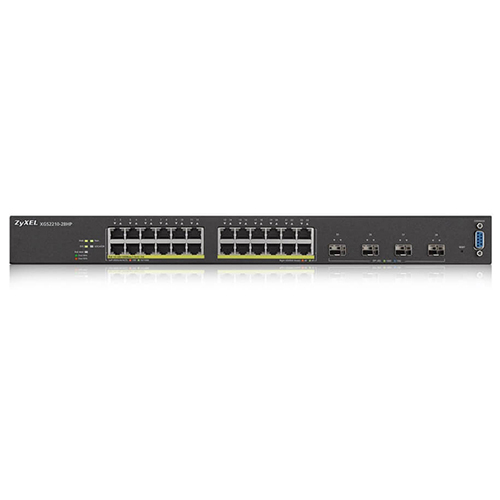

24-port GbE Layer 3 Access PoE Switch with 10GbE Uplink ยี่ห้อ ZYXEL รุ่น XGS2210-28HP
The XGS2210 Series allows creating a physical stack through two standard 10-Gigabit SFP+ ports to facilitate management for multiple switches with one single interface.
The Zyxel XGS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
Zyxel XGS2210 Series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education – and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the Zyxel XGS2210 Series offers a high level of security, flexibility and control for diverse access layer deployments.
|
Models
|
XGS2210-52
|
XGS2210-52HP
|
XGS2210-28
|
XGS2210-28HP
|
|---|---|---|---|---|
| Models | ||||
| Product name | 48-port GbE Layer 3 Access Switch with 10GbE Uplink | 48-port GbE Layer 3 Access PoE Switch with 10GbE Uplink | 24-port GbE Layer 3 Access Switch with 10GbE Uplink | 24-port GbE Layer 3 Access PoE Switch with 10GbE Uplink |
| Switch class | Layer 3 Access | Layer 3 Access | Layer 3 Access | Layer 3 Access |
| Port Density | ||||
| Total port count | 52 | 52 | 28 | 28 |
| 100/1000 Mbps | 48 | – | 24 | – |
| 10-Gigabit SFP+ | 4 | 4 | 4 | 4 |
| Stacking | Yes | Yes | Yes | Yes |
| PoE | ||||
| PoE ports | – | 48 | – | 24 |
| Total PoE budget (Watts) | – | 375 | – | 375 |
| High Power PoE 802.3at | – | Yes | – | Yes |
| Performance | ||||
| Switching capacity (Gbps) | 176 | 176 | 128 | 128 |
| Forwarding rate (Mpps) | 130.9 | 130.9 | 95.2 | 95.2 |
| Packet buffer (byte) | 1.5 M | 1.5 M | 1.5 M | 1.5 M |
| MAC address table | 16 K | 16 K | 16 K | 16 K |
| L3 forwarding table | Max. 1 K IPv4 entries; Max. 512 IPv6 entries | |||
| Static route | 64 | 64 | 64 | 64 |
| IP interface | 32 | 32 | 32 | 32 |
| Power | ||||
| Input | 100 – 240 V AC, 50/60 Hz | |||
| Max. power consumption (watt) | 45 | 495 | 20 | 453 |
| Physical Specifications | ||||
| Item | Dimensions (WxDxH)(mm/in.) 441 x 270 x 45/17.36 x 10.63 x 1.77 Weight (kg/lb.) 3.86/8.51 |
Dimensions (WxDxH)(mm/in.) 440 x 330 x 44.5/17.32 x 12.99 x 1.75 Weight (kg/lb.) 5.38/11.86 |
Dimensions (WxDxH)(mm/in.) 441 x 270 x 45/17.36 x 10.63 x 1.77 Weight (kg/lb.) 3.7/8.16 |
Dimensions (WxDxH)(mm/in.) 440 x 330 x 44.5/17.32 x 12.99 x 1.75 Weight (kg/lb.) 5.06/11.16 |
| Included accessories |
|
|||
| Green Feature | ||||
| Fanless | – | – | Yes | – |
| Environmental Specifications | ||||
| Operating | Temperature: 0°C to 50°C/32°F to 122°F Humidity: 10% to 95% (non-condensing) |
|||
| Storage | Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 10% to 90% (non-condensing) |
|||
| MTBF (hr) | 970,594 | 500,904 | 831,699 | 560,726 |
| Heat dissipation (BTU/hr) | 153.3 | 1,688 | 68.2 | 1,483.4 |
| Acoustic noise @ 25°C | 51.6 | 57.6 | 0 | 57 |
