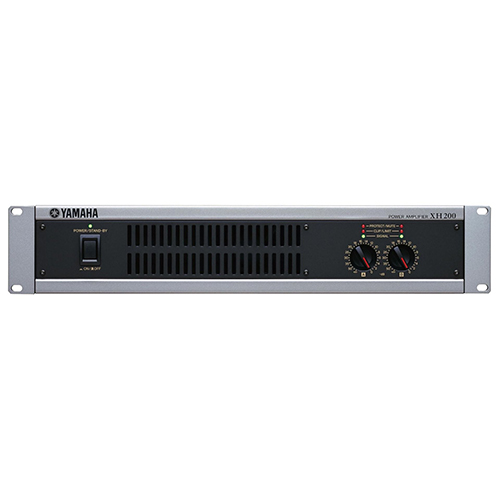

เครื่องขยายเสียง ยี่ห้อ YAMAHA รุ่น XH200
- 2 channel 100V amplifier with 200W
- Euroblock Inputs
- built-in subwoofer high pass filter
- monitor/remote connector
| 100V models | XH200 | |
|---|---|---|
| Output power; 20Hz-20kHz | 70V line | 200W x 2, RL=50ohms |
| 100V line | 200W x 2, RL=25ohms | |
| 120V models | XH200 | |
| Output power; 20Hz-20kHz | 70V line | 200W x 2, RL=50ohms |
| 100V line | 200W x 2, RL=25ohms | |
| 230V models | XH200 | |
| Output power; 20Hz-20kHz | 70V line | 200W x 2, RL=50ohms |
| 100V line | 200W x 2, RL=25ohms | |
| 240V models | XH200 | |
| Output power; 20Hz-20kHz | 70V line | 200W x 2, RL=50ohms |
| 100V line | 200W x 2, RL=25ohms | |
| General specifications | XH200 | |
| Total harmonic distortion | Less than 0.1% (40Hz-20kHz; Halfpower), RL=4ohms | |
| Intermodulation distortion | Less than 0.1% (60Hz:7kHz=4:1; Halfpower) | |
| Frequency response | +0dB, -0.5dB (HPF=40Hz, 80Hz~20kHz) | |
| S/N ratio | More than 103dB (DIN AUDIO) | |
| Hum & noise level | Residual output noise | Less than -65dBu |
| Crosstalk | Less than -60dB | |
| Voltage gain | 38dB (100V), 35dB (70V) | |
| Input sensitivity | +4dBu | |
| Maximum input voltage | +22dBu | |
| I/O Connectors | Line input / output ports | 2x Euroblock |
| Speaker output ports | 2x Barrier strip | |
| Control ports | D-sub 15pin | |
| Processors | HPF (40Hz/ 80Hz, 12dB/oct) | |
| Protection circuit | Load protection | Power switch on/off mute, DC-fault (Output relay off; Restored automatically), Clip limiting (THD ≥ 0.5%) |
| Amplifier protection | Thermal (Mute the output; heatsink temp ≥ 90°C; return automatically), VI limiter (Limit the output, RL ≤ 16ohms) | |
| Power supply protection | Thermal (Amplifier shuts down automatically, Operation not restored automatically; heatsink temp ≥ 90°C) | |
| Amplifier class | EEEngine | |
| Cooling | Variable-speed fan | |
| Power requirements | Depend on area of purchase; 100V, 120V, 230V or 240V; 50/60Hz | |
| Power consumption | Music source equivalent | 400W |
| Idling | 40W | |
| Stand-by | 5W | |
| Dimensions | W | 480mm; 18-7/8in |
| H | 88mm; 3-7/16in (2U) | |
| D | 412mm; 16-1/4in | |
| Net weight | 9.8kg; 21.6lbs | |
| Accessories | Owner’s manual, AC power cable, Security cover, 4x 3-pin Euroblock connector | |
