XNP‐6120H

2 megapixel (1920 x 1080) resolution
12X optical zoom (5.2 ~ 62.4mm) (54.58? ~ 5.30?)
Max. 60fps@all resolutions (H.265/H.264)
H.265, H.264, MJPEG codec supported, multiple streaming
Day & Night (ICR), WDR (150dB), Defog

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

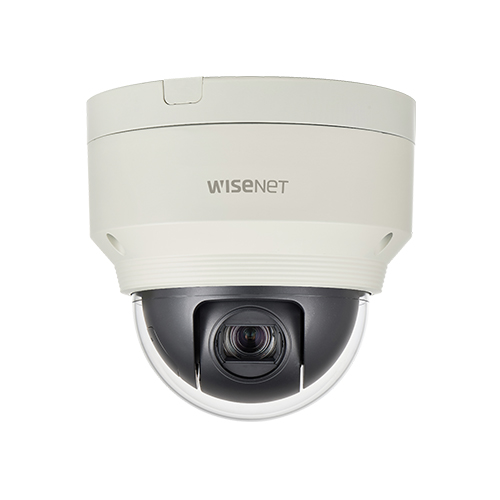

กล้องวงจรปิด 2MP Outdoor Mini PTZ ยี่ห้อ Wisenet รุ่น XNP‐6120H

2 megapixel (1920 x 1080) resolution
12X optical zoom (5.2 ~ 62.4mm) (54.58? ~ 5.30?)
Max. 60fps@all resolutions (H.265/H.264)
H.265, H.264, MJPEG codec supported, multiple streaming
Day & Night (ICR), WDR (150dB), Defog
Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
Motion detection, handover
SD/SDHC/SDXC memory slot (Max. 512GB)
WiseStream II support
IP66, IK10

Video
Imaging Device																																																																1/2.8″ 2.16MP CMOS
Resolution																																																																1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate																																																																H.265/H.264: Max. 60fps at all resolutions Motion JPEG: Max. 30fps at all resolutions
Min. Illumination																																																																Color: 0.05 Lux (1/30sec, F1.6, 50IRE) B/W: 0.005 Lux (1/30sec, F1.6, 50IRE) Color: 0.03 Lux (1/30sec, F1.6, 30IRE) B/W: 0.003 Lux (1/30sec, F1.6, 30IRE)
Video Out																																																																CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio)																																																																5.2~62.4mm(12x) zoom
Max. Aperture Ratio																																																																F1.6(Wide)~F3.0(Tele)
Angular Field of View																																																																H: 54.58˚(Wide) ~ 5.30˚(Tele) / V: 32.19˚(Wide) ~ 3.00˚(Tele)
Min. Object Distance																																																																Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
Focus Control																																																																Auto / Manual / One Shot AF
Lens Type																																																																DC auto iris
Pan / Tilt / Rotate
Pan Range																																																																360˚ Endless
Pan Speed																																																																Preset: 350˚/sec, Manual: 0.024˚/sec ~ 200˚/sec
Tilt Range																																																																190˚(-5˚ ~ 185˚)
Tilt Speed																																																																Preset: 350˚/sec, Manual: 0.024˚/sec ~200˚/sec
Sequence																																																																Preset (300 ea), Swing, Group (6 ea), Trace, Tour (1 ea), Auto Run, Schedule
Preset Accuracy																																																																±0.2˚
Operational
Camera Title																																																																Displayed up to 85 characters
Day & Night																																																																Auto(ICR)
Backlight Compensation																																																																BLC, HLC, WDR
Wide Dynamic Range																																																																150dB
Digital Noise Reduction																																																																SSNRⅤ
Digital Image Stabilization																																																																Support(built-in gyro sensor)
Defog																																																																Support
Motion Detection																																																																8ea, polygonal
Privacy Masking																																																																24ea, rectanglar zones
Gain Control																																																																Low / Middle / High
White Balance																																																																ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation																																																																Flip, Mirror
Analytics																																																																Tampering, Loitering, Directional Detection, Virtual Line, Enter/Exit, Appear / Disappear, Audio Detection, Sound classification, Auto Tracking, Fog detection – with Metadata
Serial Interface																																																																RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O																																																																Input 1ea / Output 1ea
Alarm Triggers																																																																Analytics, Network disconnect, Alarm input
Alarm Events																																																																File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Preset
Audio In																																																																Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out																																																																Line out, Max.output level: 1Vrms
Auto Tracking																																																																Support
Coaxial Protocol																																																																Support
Network
Ethernet																																																																RJ-45 (10/100BASE-T)
Video Compression																																																																H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG
Audio Compression																																																																G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec																																																																Manual(5ea area), WiseStreamⅡ
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Multiple streaming(Up to 10 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security																																																																HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface																																																																ONVIF Profile S/G SUNAPI 2.0(HTTP API) Wisenet open platform
General
Web Viewer																																																																Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage																																																																Micro SD/SDHC/SDXC 2slot 512GB
Memory																																																																1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity																																																																-30°C~+60°C(-22°F ~ +140°F) / Less than 90% RH
Certification																																																																IP66, IK10
Input Voltage																																																																12VDC, PoE
Power Consumption																																																																Max 12W
Mechanical
Color / Material																																																																Ivory / Aluminum
Product Dimensions / Weight																																																																Ø168 x 161.5mm(6.61 x 6.36″), 1.9kg(4.19 lb)
