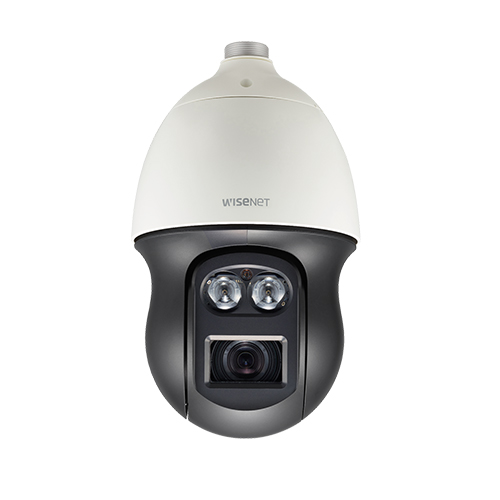

กล้องวงจรปิด Network Outdoor PTZ camera ยี่ห้อ Wisenet รุ่น XNP‐6320RH
- 2 MP (1920 x 1080) resolution
- IR viewable length : 200m (656ft)
- 32X optical zoom lens (4.44mm ~142.6mm) (61.8? ~ 2.19?)
- H.265, H.264, MJPEG codec support
- Multiple streaming, WiseStream II support
- Day & Night (ICR), WDR (150dB)
- DIS with Built-in Gyro sensor
- Azimuth display (Cardinal & intermediate directions)
- Auto tracking, Intelligent video analytics
- Dual Memory slots (Maximum 512GB)
- IP66, IK10
- HPoE IEEE802.3bt, Class7 (Injector included), 24VAC
- Optional fiber optic interface
- Suggested replacement: XNP-6400R
| Video | |
|---|---|
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 400°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 95°(-5°~90°) |
| Tilt Speed | Preset: 250°/sec, Manual: 0.024°/sec~250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 200m(656.17ft) |
| Auto Tracking | Support |
| Network | |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | 24VAC : -50°C~+55°C (-58°F ~ +131°F), Less than 95% RH-Non-Condensing HPoE : -40°C~+55°C (-40°F ~ +131°F) /Less than 95% RH-Non-Condensing * Start up should be done at above -35°C FAN/Heater included |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, HPoE(IEEE802.3bt, Class7) |
| Power Consumption | 24VAC: Max. 83W (typical : 30W) HPoE : Max. 51W (typical : 30W) |
| Mechanical | |
| Color / Material | Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic |
| Product Dimensions / Weight | ø236.9×407.7mm(9.33×16.05″), 6.8Kg(14.99 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 64.2m(210.5ft) / Tele: 2009.0m(6591.3ft) |
| Observe (63PPM/ 19PPF) | Wide: 25.7m(84.2ft) / Tele: 803.6m(2636.5ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.8m(42.1ft) / Tele: 401.8m(1318.3ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.4m(21.1ft) / Tele: 200.9m(659.1ft) |
