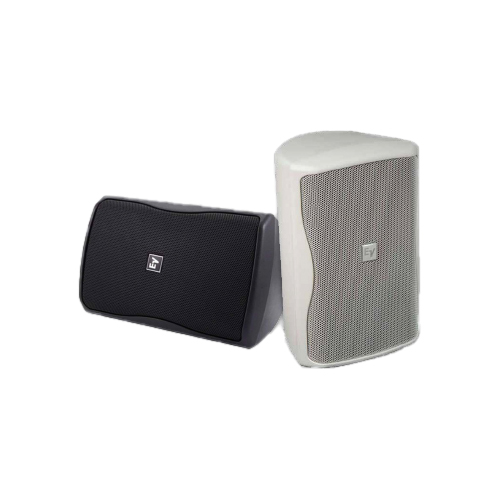

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น ZX3-90W

• Frequency response (-3dB): 58 – 15000 Hz
• Frequency response (-10dB): 48 – 20000 Hz
• Sensitivity 1W/1m: 97 dB
• System power handling (continuous/program/peak): 600/1200/2400 watts
• Low-frequency power handling (continuous/program/peak): 500/1000/2000 watts
• High-frequency power handling (continuous/program/peak): 40/80/160 watts
• LF transducer: DVX3121
• HF transducer: ND2
• Enclosure material: polypropylene
• Color: black
• Color: white
• Outdoor: yes
• Speaker type: full-range
• Weight net: 43.65 lb. (19.8 kg)

Specifications

• Color:   Black, white
• Input Connection:   2 conductor SJO cable and gland nut
• Nominal Impedance : 8 Ω
• Speaker Type:  Full-range
• Frequency Response (-3 dB):   58 – 15000 H
• Frequency Response (-10 dB):  48 – 20000 Hz
• Internal Crossover:   Yes
• Recommended High-Pass Frequency:  50 Hz
• Sensitivity 1 W/1 :  97 dB
• Max. SPL/1m (calc):  131 dB
• Coverage (Nominal -6 dB) H:  90/60 °
• Coverage (Nominal -6 dB) V:  50/60 °
• System Power Handling (Continuous/Program/Peak):  600//2400 Watts
• LF Transducer:  12-inch DVX3121A
• LF Power Handlin:  500 Watts
• HF Power Handling:   40 Watts
• HF Transducer:  2-inch ND2
• Crossover Frequency:  2000 Hz
• Minimum Impedance:  6.2 Ω
• Enclosure Material:   High Impact Polystyrene
• Flying:   Yes
• Outdoor:   Yes
• Grill:  Polyester Powder Coated, 18GA Galvanized Steel
• Height:  613 mm (24.13″)
• Width:   397 mm (15.63″)
• Depth:  362 mm (14.25″)
• Weight Net:  19.8 kg (43.65 lbs)
